Basic Info

Product Description

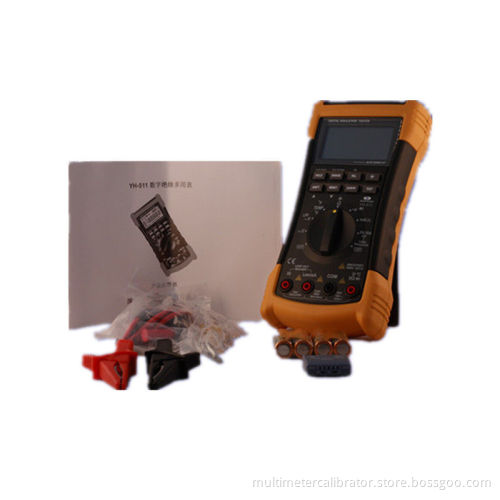

Insulation Multimeter YH511

Features

☉Complies with IEC/EN 61010-1 1000V CAT III , 600 V CAT IV.

☉1000V DC Voltage, 750V AC Voltage(TRMS).

☉6600 Count(except for capacitance, temperature, insulation).

☉When the input terminals is V and COM, The overload protective voltage is up toAC 250 V (TRMS) ;When the input terminals is mA and

COM, protective Current is 0.4A; when the input terminals is Hi and Lo , The overload protective voltage is 600V.

☉Batteries:Four AA batteries (NEDA 15A or IEC LR6) Meter use 1000 hours; Insulation test use: Meter can perform at least 1000 insulation

tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on

and 25 seconds off.

Specifications

Insulation Measurement Range	0.01 MΩ to 2 GΩ
Insulation Test Voltages	50, 100, 250, 500, 1000 V
Insulation Source Voltage	+ 20 %, - 0 %
Insulation Short-Circuit Test Current	1 .5mA nominal
Insulation Auto Discharge	Discharge time <1 second for C = 1 μF or less
Insulation Live Circuit Detection	Inhibit test if terminal voltage > 20 V prior to initialization of test
Insulation Maximum Capacitive Load	Operable with up to 1 μF load
Storage Altitude	12000m
Operating Altitude	2000m 1000V CAT III, 3000m 1000V Ⅱ
Temperature Coefficient	0.05 × (specified accuracy) per °C for temperatures < 18 °C or > 28 °C.
Relative Humidity	40%~75%.
