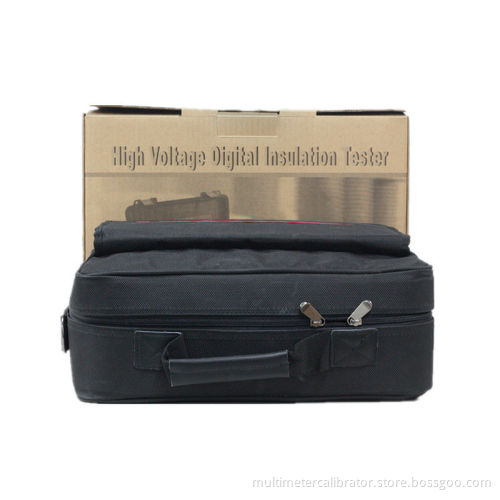

High Voltage Digital Insulation Tester YH510

Features

☉ Checking the insulation of high-voltage electrical equipment

(electric motor, transformer, and cable, etc)

☉Test Voltage from 250V~5000V

☉Insulation Resistance up to 5TΩ

☉ Short Current up to 3mA

☉ Auto Calculate PI(Polarization Index) and DAR(Dielectric absorption ratio)

☉ Step-Voltage Measurement

☉ Temperature measurement

☉ Temperature compensation for insulation Test

☉ Leakage Current measurement

☉ Data Storage function and uploading to PC by USB2.0 interface

☉ Power Supply:LR6 Battery×6/ rechargeable battery Ni~MH 7.2V

(Charger;Input Voltage 100V~240V ; Frequency 50Hz~60Hz, Output Voltage 12V DC 3A)

☉ Timer Function

☉Weight 2.5kg (not including Battery)

☉Size 284mm(L)×230mm(w)×125mm(H)

Test Voltage

☉ Test Voltage Range; DC250V~ DC 5.00kv

☉ Voltage Set:

☉ Wide adjust;(250V; 500V; 1000V; 2.5kv; 5kv)

☉ Fine adjust (250V~1KV; Step 25V; 1KV~5KV, Step 100V)

☉ Accuracy; 5%

☉ Step mode:500V, 1.0KV, 1.5KV, 2.0KV, 2.5KV

☉ Test Current 1nA~3mA

Temperature compensation

For obtaining the insulation resistance under a temperature other than current ambient temperature.

Converts the measured value of resistance to the insulation resistance under a reference temperature, and displays the result.

Depending on the different properties of test objects, there are 10 modes of compensation.

Insulation Resistance

Set test voltage	Test range	Threshold value of basic error
250 V DC	0.01 MΩ ~ 2.5 GΩ	±(5% rdg + 5 dgt)
250 V DC	2.51 GΩ ~ 250 GΩ	±(20% rdg +10 dgt)
500 V DC	0.01 MΩ ~ 5.0 GΩ	±(5% rdg +5 dgt)
500 V DC	5.01 GΩ ~ 500 GΩ	±(20% rdg +10 dgt)
1000 V DC	0.01 MΩ ~ 10 GΩ	±(5% rdg +5 dgt)
	10.1 GΩ ~ 500 GΩ	±(20% rdg +10 dgt)
	501 GΩ ~ 999 GΩ	±(30% rdg +20 dgt)
2.5 kV DC	0.01 MΩ ~ 25 GΩ	±(5% rdg +5 dgt)
	25.1 GΩ ~ 500 GΩ	±(20% rdg +10 dgt)
	501 GΩ ~ 999 GΩ	±(30% rdg +20 dgt)
	1 TΩ ~ 2.5 TΩ	±(30% rdg + 40 dgt)
5 kV DC	0.01 MΩ ~ 50 GΩ	± (5% rdg + 5 dgt)
	50.1 GΩ ~ 500 GΩ	±(20% rdg + 10 dgt)
	501 GΩ ~ 999 GΩ	±(30% rdg + 20 dgt)
	1 TΩ ~ 5 TΩ	±(30% rdg + 40 dgt)

Leak Current

Range	Measuring range	Threshold value of basic error
10 nA	1.00 nA ~ 9.99 nA	± (15% rdg. + 1 nA)
100 nA	9.0 nA ~ 99.9 nA	± (15% rdg. + 5 dgt)
1000 nA	100 nA ~ 999 nA	± (2.5% rdg. + 5 dgt)
10 μA	0.90 μA ~ 9.99 μA
100 μA	9.0 μA ~ 99.9 μA
1000μA	90 μA ~ 999 μA
3 mA	0.90 mA ~ 3.00 mA
