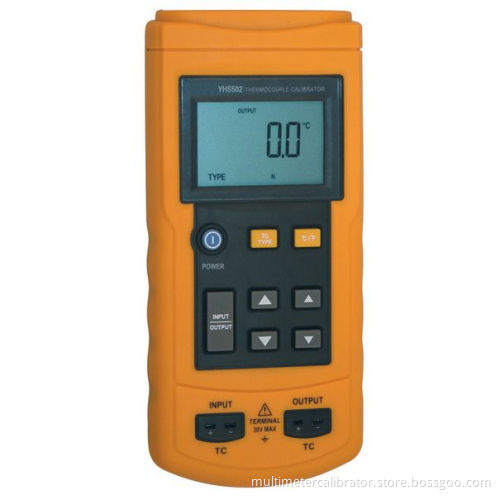

YHS-502 Thermocouple Calibrator is a precise source and measurement tool for calibrating thermocouple instruments through a thermocouple mini jack. The calibrator can be indicated in units of °C, °F , or mV.

• Measure temperature from TC output

• Simulate TC output

• Operable with eight types of thermocouples

• Calibrate linear TC transmitter with mV source function

• Selectable °F or °C

SPECIFICATIONS

Measure / simulate thermocouple	Range	-200 to 1800°C, depending on type
	Resolution	0.1°C
	Accuracy	±(0.3°C + 10µV) *
Measure / simulate mV	Range	-10 to75mV
	Resolution	0.01mV
	Accuracy	±0.02%

*Note: 8 TC types; J K T E N R S B per NIST 175 and ITS-90

Mechanical & General Specifications

Weight:	Approx. 350g (including battery)
Size:	190mm× 89mm × 42mm
Battery:	Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V
