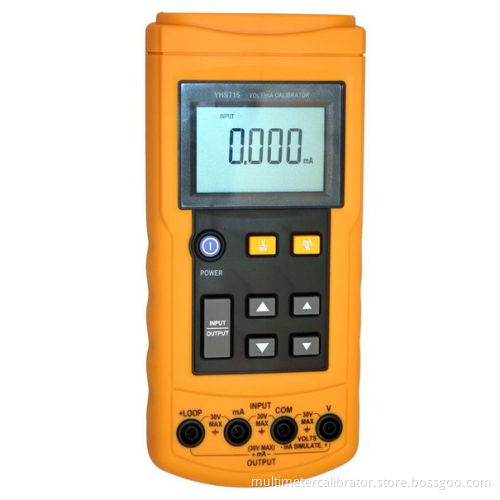

Volt/mA Calibrator YHS-715

YHS715 Volt/mA Calibrator is a source and measurement tool. This Calibrator can be used in measurement or output 0 to 24 mA DCcurrent loop, and0 to 10 V DCvoltage.

Measure loop current (0-20 mA, 4-20 mA) signals with very high accuracy of 0.015% and 1 mA resolution
Measure voltage output process signals from PLCs, transmitters
Source or simulate24 mA loop current
Source voltage to 100 mV or 10V
24V loop supply with simultaneous current measurement
Enhanced voltage and current measure and source accuracy
Improved battery life
250 ohm HART resistor with loop power
Holster features test lead storage
Compatible with toolpack magnetic hanging system
Step and linear ramp output function
Configurable zero and span settings

Functional specifications

Measure / Source mV	Range:	0 to 100 mV
	Resolution:	0.01 mV
	Accuracy:	0.02% + 2 counts
Measure / Source V	Range:	0 to 10 V
	Resolution:	0.001 V
	Accuracy:	0.02% + 2 counts
Measure / Source/ Simulate mA (% of span)	Range:	0 to 24 mA (-25% to 125%)
	Resolution:	0.001 mA
	Accuracy:	0.015% + 4 counts
	Note: Sink (simulate transmitter) Display mA or % of span

Specifications

LoopPower	Range:	24 V dc
	Accuracy:	+/- 10%
	Note: Drive; 20 mA into 1000 Ω for battery >6.8V; 700 Ω for battery 5.8 to 6.8 V
Display	Clear 5 digit LCD

Mechanical & General Specifications

Weight:	350g(include battery)
Size:	190mm× 89mm × 42mm
Battery:	9VDC, 006P or 1604
