90 Degree PAL NTSC CCTV Mini Camera for Pub / Shop / Busine
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

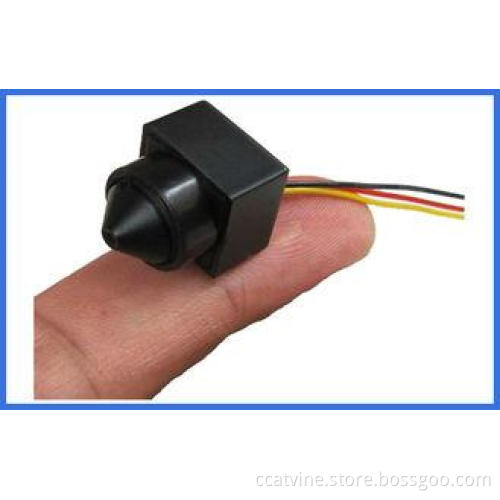

90 Degree PAL NTSC CCTV Mini Camera for Pub / Shop / Business Security
Quick Detail:
1. Model Number: ZBS91P36
2. Brand Name: ZHIBOSEN
3. Type: CCTV Mini camera
4. Imaging device: 1/4 CMOS
5. System format: PAL or NTSC
6. View angle: 90 degrees
6. Pixel: 480TVL
7. Place of Origin: Guangdong China
8. Gross Weight: 0.5kg
9. Package Size: 13x8x7cm
Description:
2. High resolution 480TVL,0.05Lux
3. 3.6-24V 90degree
4. Excellent Night Vision
Applications:
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Specifications :
| PICK UP ELEMENT | Single chip 1/4CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC:720(H)×480(V) | PAL:720(H)×576(V) |
| SENSOR DIMENSION | 3.584mm(H)×2.688mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 480TV Lines | |
| SENSITIVITY | 0.05Lux/F1.2 | |
| LENS & VIEW ANGLE | F2.8 / 90° | |
| S/N RATIO | 48dB | |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| AUDIO OUT | 1.0V p-p/1Kohm (Only MC91AB18) | |
| WEIGHT | 5g | |
| SIZE(LXWXH) | MC91B36:15.5X15.5X20mm; MC91AB18: 15.5X15.5X22.5mm | |
| WORK CURRENT | DC12V: 45mA DC5V: 95mA | |
| POWER REQUIREMENT | DC:3.6V-24V | |
| OPERATING TEMPERATURE | - 10° C ~ +50°C ,less than 90% RH | |
| Connection | PIN1à Red DC5V /12V PIN2à Black GND PIN3à Yellow VIDEO OUT PIN4àWhite AUDIO OUT | |
Competitive advantages:
good price, reliable quality, guarantee of delivery,good services
