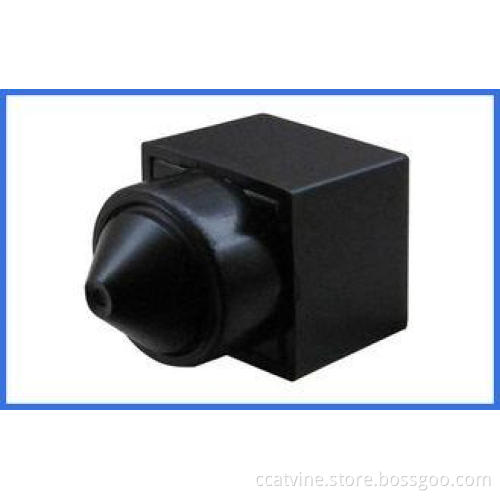

1 / 4 CMOS 480TVL Pinhole CCTV Mini Camera With Audio , sma

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

1 / 4 CMOS 480TVL Pinhole CCTV Mini Camera With Audio , small spy cams

Quick Detail:

1. Model Number: ZBS91AP36
2. Brand Name: ZHIBOSEN
3. Type: CCTV Mini camera
4. Imaging device: 1/4 CMOS
5. System format: PAL or NTSC
6. View angle: 90 degrees
6. Pixel: 480TVL
7. Place of Origin: Guangdong China
8. Gross Weight: 0.5kg
9. Package Size: 13x8x7cm

Description:

1. Small Size: easy to install into narrow room and slim tube, etc.;

2. Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;

3. High resolution, high sensitivity, high SNR;

4. Day & night dual mode auto switch;

5. Low Illumination, Low Current and power consumption;

6. CMOS sensor generation IV+DSP chip offer true color & HD video.

7. 90degree pinhole lens,3.6-24v wide voltage

Applications:

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Specifications :

PICK UP ELEMENT	Single chip 1/4CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:720(H)×480(V)	PAL:720(H)×576(V)
SENSOR DIMENSION	3.584mm(H)×2.688mm(V)
HORIZONTAL RESOLUTION	Approximately 480TV Lines
SENSITIVITY	0.05Lux/F1.2
LENS & VIEW ANGLE	F2.8 / 90°
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm (Only MC91AB18)
WEIGHT
	5g
SIZE(LXWXH)	MC91B36:15.5X15.5X20mm; MC91AB18: 15.5X15.5X22.5mm
WORK CURRENT	DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT	DC:3.6V-24V
OPERATING TEMPERATURE	- 10° C ~ +50°C ,less than 90% RH
Connection	PIN1à Red DC5V /12V PIN2à Black GND PIN3à Yellow VIDEO OUT PIN4àWhite AUDIO OUT

Competitive advantages:

good price, reliable quality, guarantee of delivery,good services
