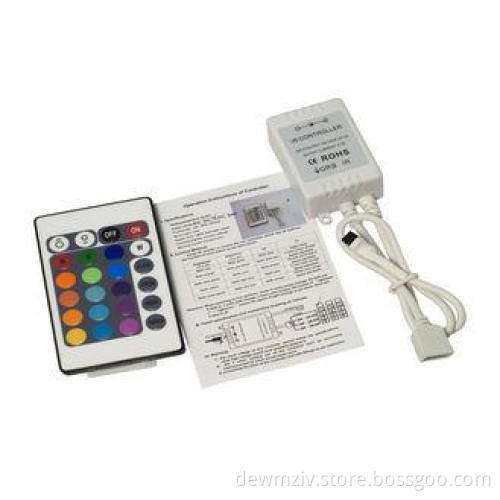

12V RGB infrared RGB LED Remote Control Controller For 5050

12V RGB infrared RGB LED Remote Control Controller For 5050 SMD LED Strip

Quick Detail:

1, IR Remote Control Controller for 5050 SMD RGB LED strip
2, Connection mode: anode+(pls check your led strip mode to ensure either it is Anode or Cathode)
3, Input Voltage: 12V(Power supply is not included. You can easily connect to the standard notebook computer power supply)
4, Output current: 6A max
5, Working Temperature: -20-60℃
6, Could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote.

Description:
24-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.


Specification:

Feature:

Direction: press static color every time, the machine mode flicker two times before stopping, then recover the static color. When switching to four dynamic mode(7 color jumpy change, All fade out and fade in, 7color fade change, 3 base color jumpy), the button of “brightness +” “brightness -” means the speed of light change is up/down, there are 32 step in all.


Applications:
