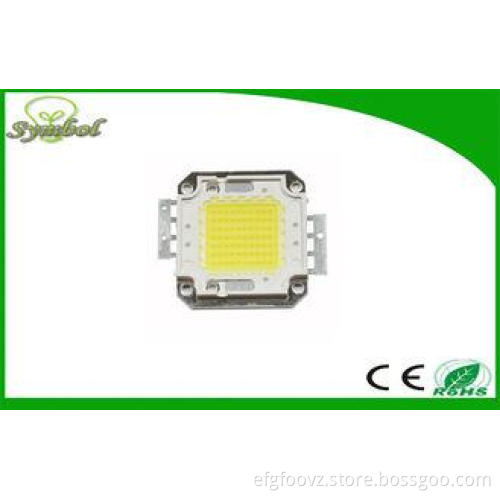

Bridgelux Chips 70W 6500K High Powered LEDs RA80 For High Power Flood Light
Quick Detail:
- Model : 70W Bridgelux High-power integrated LED
- Luminous Intensity: 110-140lm/w
- Luminous Flux(lm): 7700 - 9800lm
- Power: 70w
- Power Dissipation: 70
- Viewing Angle(°): 140
- Color Rendering Index(Ra): 80
- Color Temperature: 2700K -7500k
- working current: 300MA 600MA 900Ma
- working Voltage: 30 - 50V
- Viewing angle: 140 degrees
Description:
1. 70W Epistar High-power integrated LED
2. Chip Material: InGaN
3. Emitting Color: 2700K -7500k
4. More than 50000 hours lifespan with 3 years warranty
5. Luminous flux 7700 - 9800lm.
6. Optical Attenuation(%): 1
7. Operating Temperature(℃): -30 - 60
8. Storage Temperature(℃): -10 - 40
9. It is widely used in led floodlight led high bay light led streetlight and so on
Applications:
Bridgelux COB LED is widely used on indoor led lamps,like,led flood light,led high bay light led track light,led street light and so on.
Specifications :
|
Item |
70W High-power integrated LED specification |
|
Commedity |
China supplier 70W Epistar High-power integrated LED factory direct sale |
|
Part No. |
XR-P00W343470W |
|
Color |
warm white, natural white, pure white,cool white, red, yellow, green, blue,orange,purple and other colors you want |
|
Chip brand |
Bridgelux |
|
Lumens |
7700 - 9800lm |
|
Power |
70watt |
|
Current |
300MA 600MA 900Ma |
|
Voltage |
30 - 50V |
|
CRI |
>75 >80 >85 |
|
CCT range |
2800-3200k (warm white) 4000-5000k (Natural white) 5000-6500k (Pure white) >7000k (Cool white) |
|
Working temperature |
-20 °C-+40 °C |
|
Super long lifetime |
50,000 H long lifetime |
|
Max Junction Temperature |
150°C |
|
Certification |
CE, Rohs |
|
Lowest thermal resistance |
8°C/W |
|
Warranty |
3 years |
|
Place of Orign |
Shenzhen Guangdong China |
|
Feature |
Anti UV |
|
Technical |
Silicone PC molding |
Competitive advantages:
1. LED with high brightness and high CRI, reach to 50,000 hours life span.
2. High energy saving, 90% energy than the incandescent lamp.
3. Green environmental protection, No UV or IR interference, no carbon dioxide emission.
4. We produce lamp beads, could provide high cost performance products
