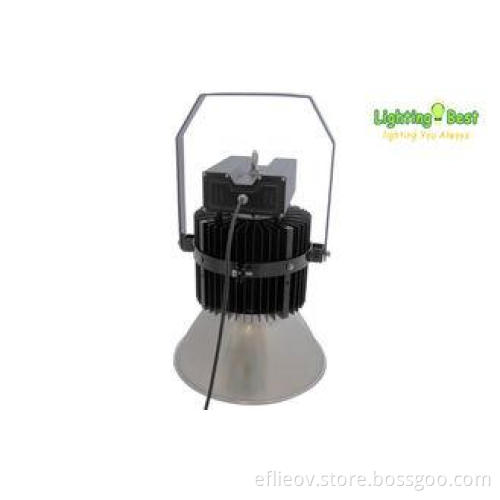

500w Cree Led High Bay Lighting with 85 - 305V 50Hz - 60Hz Input For Factory Workshop Lighting
Quick Detail:
CREE 500w led high bay light
1. Used to replace 1000w MHL
2.With CREE LED & Mean Well Driver
3. IP67 waterproof
4. 25 &85deg beam angle available
5.IES file available
6. 3-5 years warranty
Specifications:
|
Input Voltage |
AC85V-305V |
|
|
Frequency Range |
50Hz--60Hz |
|
|
Harmonic Distortion |
≤15% |
|
|
power Factor |
＞0.95 |
|
|
Power Efficiency |
＞87% |
|
|
Working Voltage |
DC30-36V |
|
|
led quantity |
96pcs |
|
|
Led Power |
500W |
|
|
Lamp Total Power |
510W |
|
|
LED Chip |
CREE |
|
|
LED luminous efficiency |
100±5lm/w |
|
|
lamp's Efficiency |
＞80% |
|
|
Lighting angle |
25° |
available |
|
45° |
available |
|
|
90° |
available |
|
|
Illuminance Uniformity |
＞0.5 |
|
|
Correlated Color Temperature |
WW |
2700k--3200k |
|
PW |
3900k--5000k |
|
|
CW |
5800k--6200k |
|
|
Color Rendering Index |
WW |
Ra＞70 |
|
PW/CW |
Ra＞75 |
|
|
Light Distribution |
Symmetric /Circular light spot |
|
|
Light Design |
LED + Reflector |
|
|
Working Temperature |
﹣40° ~ +45° C |
|
|
Storage Temperature |
﹣40° ~ +65° C |
|
|
IP Grade |
IP67 |
|
|
Working lifespan |
50.000H |
|
|
Power cable |
1.5mm² trifurcating cable |
|
|
Connect wire |
L Power line |
|
|
N Null line |
||
|
G Earth line |
||
|
Lamp Shell Color |
Black or White |
|
|
Certificate |
CE, ROHS |
|
|
Structure dimension (mm)
|
Light distribution curve |
|
Applications:
1. Factory workshop, warehouse, toll station, gas station, book store,
2. supermarket, gym, exhibition hall and other places where need lighting
Features:
1, Adopt high bright imported single integrated(COB) LED chip as light source, with good heat dissipation , low light depreciation,high shock or vibration resistance etc.
2, Unique patent heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body’s temperature, ensure the life of LED chip and power driver.
3, The heat sink surface have conducted anodic oxidation anticorrosive process, compact layout and beautiful, corrosion resistant, water proof and dust proof.
4, Apparent energy saving effect, use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
5. Adopt constant current constant voltage power driver(meanwell driver), apply to wide voltage(AC85V-270V), overcome the problems like unstable and shaky light, sound pollution and generating power grid cause by ballast, avoid eye stimulation and fatigue during the work.
Our advantages:
1. CE & RoHS & IP65 approved, 3 years Quality Guaranteed.
2. OEM & ODM welcome, more than 1 year OEM experience, independent R&D ability, and patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Convenient transportation fast delivery, Close & Easy access to both Shenzhen Seaport and Airport.
6. Flexible, small amount order accepted. Monthly supply capacity:3.000~ 10.000pcs/item
