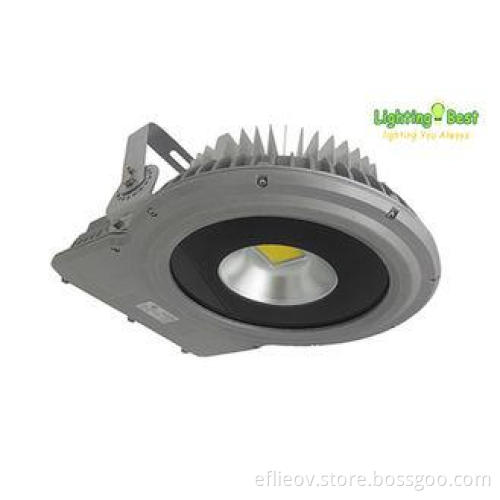

Bright Outdoor Led Flood Lights 300W With Mean Well Driver
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China Shenzhen |
|---|
Bright Outdoor Led Flood Lights 300W With Mean Well Driver & 40 deg or 90 deg beam angle
Quick Detail:
LED Flood Lights 300W
1,Power:300W
2,Drive eff: 90%
3,Driver brand: Mean Well
4,Input Voltage(V): AC85-305V
5,PF: 0.95
6.beam angle:40deg or 90deg
Specifications:
|
Input Voltage |
AC85V-305V |
|
|
Frequency Range |
50Hz--60Hz |
|
|
Harmonic Distortion |
≤15% |
|
|
power Factor |
＞0.95 |
|
|
Power Efficiency |
＞87% |
|
|
Working Voltage |
DC30-36V |
|
|
led quantity |
1pc |
|
|
Led Power |
300W |
|
|
Lamp Total Power |
307W |
|
|
LED Chip |
Epistar or Bridgelux |
|
|
LED luminous efficiency |
90±5lm/w or 100±5lm/w |
|
|
lamp's Efficiency |
＞80% |
|
|
Lighting Angle |
40° |
Available |
|
90° |
Coming soon |
|
|
|
|
|
|
Illuminance Uniformity |
＞0.5 |
|
|
Correlated Color Temperature |
WW |
2700k--3200k |
|
PW |
3900k--5000k |
|
|
CW |
5800k--6200k |
|
|
Color Rendering Index |
WW |
Ra＞70 |
|
PW/CW |
Ra＞75 |
|
|
Light Distribution |
Symmetric /Circular light spot |
|
|
Light Design |
LED + Reflector |
|
|
Working Temperature |
﹣40° ~ +45° C |
|
|
Storage Temperature |
﹣40° ~ +65° C |
|
|
IP Grade |
IP65 |
|
|
Working lifespan |
50.000H |
|
|
Power cable |
1.5mm² trifurcating cable |
|
|
Connect wire |
L Power line |
|
|
N Null line |
||
|
G Earth line |
||
|
Lamp Shell Color |
Black & White |
|
|
Certificate |
CE, ROHS, |
|
|
Lamp weight : G.W./N.W. |
14.2 kg/15.5 kg |
|
|
Packing dimension |
465*270*615 mm |
|
|
Structure dimension (mm) |
Light distribution curve |
|
Applications:
1.Bill board, Gymnasiums, factory space, garden design, hotels, buildings,
2.square nightscape lighting, interior decoration, outdoor reflective and other places where need lighting
More Detail:
1, Adopt high bright imported single integrated(COB) LED chip as light source, with good heat dissipation , low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.
2, Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body’s temperature, ensure the life of LED chip and power driver.
3, The heat sink surface have conducted anodic oxidation anticorrosive process., compact layout and beautiful, corrosion resistant, water proof and dust proof.
4, Apparent energy saving effect, use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
5, Eco-friendly non-pollution, no pollution elements such as lead and mercury, non pollution to environment.
Competitive Advantage:
1. CE & RoHS & IP65 approved, Quality Guaranteed
2. Imported original Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, more than 3 year OEM experience, independent R&D ability, and patent design.
4. Fast delivery, 2-12 workdays depends on order quantity after payment confirmed
5. Convenient transportation fast delivery, Close & Easy access to both Shenzhen Seaport and Airport.
led flood lights 300w, 300w led floodlights, HPS replacement lamp
