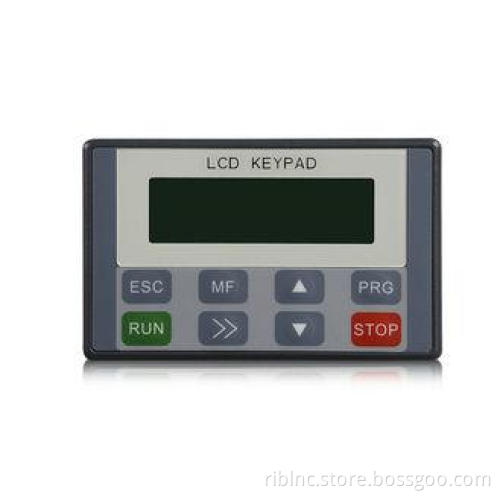

IP20 24V DC LCD Keypad Inverter Accessories RS-485 Protocol
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Detail:
used for operating the HD700 drive in long distance by Modbus RTU serial comms
The maximum length of cable is up to 300 meters
Description:
Features
The main features of the HDOM-RM-Keypad are as follows:
- Parameter displayed.
- Fast editing/browsing/copying parameters.
- Own processer chip, supporting hot fit and unfit.
- Using the drive or external 24VDC supply and communicating through the RS485 signal.
- Meeting ELV
Specifications:
|
Electrical characteristics |
|
|
Communication speed |
19200bps |
|
Power |
625mW |
|
Signal |
Standard RS-485 protocol signal |
|
Environment and mechanical characteristics |
|
|
Operating environment |
Indoor, no direct sunlight, no-flammable, corrosive gasses |
|
Operating temperature |
−10℃~+40℃ |
|
Operating humidity |
≤90% RH, no-condensing |
|
Storage temperature |
−40℃~+70℃ |
|
Communication distance |
≤300m |
|
Weight |
130g |
|
IP code |
IP20 |
