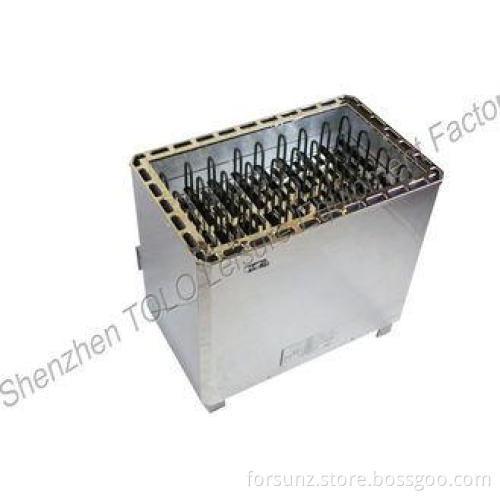

25kw / 220v Mirror-polished Electric Sauna Heater , Heavy d

Heavy duty Large power mirror-polished Stainless Steel sauna heater KSA-H250 25.0kw/220v~400V for commercial dry sauna

Quick Detail:

• Model: KSA-H250 with out control
• Power: 25.0kw
• Suit for sauna room volume: 34~48 m³
• Voltage: 400v/3 phase
• Stone volume: ~40kg
• 1-8 hour pre-selected time setting and 1-4 hour working time under A model
• Maximum 12 hours working time under B model
• Controller: digital out/wall mounted controller
• Shell material: sus304
• Parts: control box and digital control panel
• Electric heater type: electrical heater
• Heating element: heat element
• Installation: Freestanding
• Use: sauna room


25kw / 220v Mirror-polished Electric Sauna Heater , Heavy duty and Stainless Steel

KSA sauna heater kilowatt range: 3.0kw, 4.5kw, 6.0kw, 8.0kw, 9.0kw, 10.5kw, 12.5kw, 15.0kw, 18.0kw, 21.0kw and 25.0kw. Or customized by your requirement.

Work mode :

A work mode: when indicator light “A” is on, it is work mode A, running time (Heater running) is four hours, maximum unworking time (Means the heater is not working) is eight hours. e. g. The time indicates 4:00 as a divided line, the heater’s running time is 4:00-0:00 ; unworking time is 12:00-4:00 and heater doesn’t work. If you don’t want to start the heater at once (delay 2 hours to automatically start heater). The time is set at 6:00.

B work mode: when indicator light “B” is on, the heater straightly enter into normal work state (no unworking time ), the operation time can last 12 hours.

Remark : 1) The time of setting about work mode A and B are all 0:30 ~12:00.

2) Unworking time of work mode A can’t below work time 4:00, otherwise it don’t allow presetting time.

3) The time is indicated count down.

Description:

• Customer can preset the working time and the waiting time in A and B model. Under A model, user can set waiting time from 0 to 8 hours. When the time count down to zero, it will switch to B model automatically and works as the setting under B model
• Under B model, user can set working time from 30 minutes to 12 hours or no time limited.
• We use low voltage controller and separate electrical box bring reliable safety
• Large and improved time display screen showing temperature in Centigrade or Fahrenheit according to the customer's preference
• The temperature can adjusted from 50-110 centigrade or 122-230 Fahrenheit Sauna heater will Sequential heating according the detected sauna room temperature and the setting temperature. It save energy and prolong the main parts' life.
• Large and improved time display screen showing time in hours
• Extra switch for sauna room lamp
• High temperature cut-off for both sauna room and sauna heater. Double safety protection
• mirror-polished Stainless Steel shell .

Applications:

For dry type sauna room in hotel and chamber commercial use

Technical data:

20 feet container can load: 96pcs

40 feet container can load: 192pcs

40HC container can load: 243pcs

Specifications:

1. Type: Traditional Sauna
2. Control panel: Built-in control /Out control
3. Power output: 25.0kw
4. voltage: 380V~400V
5. phase: three
6. Current: 38A
7. Main Material: stainless steel shell with industrial grade Teflon coated heating elements
8. Color: stainless steel color
9. Features: high-temp protection device, anti-corrosive and heat-proof
10. Auto function: auto power off
11. Shape: Cuboid
12. Size: 700x650x440(560 bottom)mm
13. Room volume(cubic meter): 34~48
14. Stone volume(kg): ~40
15. Usage: sauna room
16. working time: 30~720 minutes
17. Heating: heat elements
18. Power source: Electric
19. Time Setting: 30~720 minutes
20. Temperature range to control: 40-105 ℃(104-221 ℉)
21. Waiting time :0~8 hours
22. Working time : maximum 12 hours

Competitive Advantage:

We test strictly before deliver the good.

1. CE standard, interlock function

2.double safety protection system sauna heater
3.low voltage controller +electrical box.
