P20 Pixel546 2 R1G1B Full Color Aluminum or Iron Video Curved Led Display Screen Walls
Description:

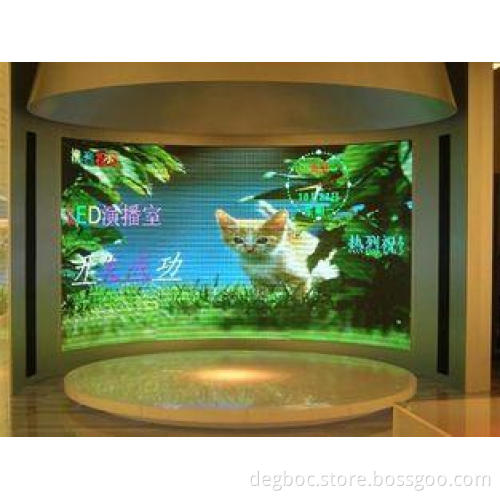

Arc/curve LED screen is a new application of the wonderful LED video display:360 degree arc led screen, semi-cuve LED screen, indoor & outdoor full color commercial advertising use arc LED video display is really a very wonderful and prosperous market. Eraled has perfect product for this kind to meet your any degree arc usage.
ERALED have the most optimalizing, customized, integrated & competitive LED display solution for the rental use advertising LED signage.
With the our mature led technology , rich LED display manufacturing experience & mass production model, we can provide the most competitive & customized rental use LED display solution for you.
With 16 years service experiences for domestic and overseas industry experience, 1st class production equipment, strict management and control processes, a unique service system, 2nd class price and 1st class quality, we are willing to work together with the friends from every district to promote the new application & popularization of LED display
Applications:
This kind of LED 2R1G1B full color led display is appliled for displaying advertising, city beautifying,
information publicity, great concerns and relative activities.
Specifications:
|
Product model number |
Mled-PH20-6 |
|
1.Pixel |
|
|
Pixel L ED |
546 |
|
Pixel Configuration |
2 R, 1G , 1B |
|
Wave length ( nm ) |
R: 626-628 , G: 518-520 , B: 466-468 |
|
Pixels Pitch ( mm ) |
20 |
|
2 . Module |
|
|
Module Size ( mm ) |
320 * 160 * 20 |
|
Module Pixels (dot) |
16 * 8 |
|
3.Unit box |
|
|
Module quantities in a unit box |
4 (L) * 6 ( H ) |
|
Unit box size ( mm ) |
|
|
Unit box Pixels ( dot ) |
64 * 48 |
|
Unit box material |
Aluminum or Iron |
|
Unit box weight (kg) |
Aluminum : 42 or Iron : 55 |
|
4.Packaging |
|
|
Packing Way |
Two unit boxes packed into one |
|
Packing box material |
Wooden case or Flight box |
|
Packing box size (mm) |
1150 * 950 * 480 |
|
5.electricity parameter |
|
|
Pixel density (dots/ m 2 ) |
2500 |
|
White Balance Brightness ( cd/m 2 ) |
≥ 6500 |
|
Color temperature ( K ) |
5000-9500 (choice by user) |
|
Brightness Adjusted |
100 grade by software or by Auto-optic induced. |
|
View Angel |
Horizontal 110 ° ; Vertical 70 ° |
|
Best viewing distance ( m ) |
16-150 |
|
Communication distance ( m ) |
Internet Wire : 120 Fiber Cable : 1000 |
|
Screen work Method |
Static |
|
LED driving method |
Constant driving current |
|
Gray Grades |
16384 levels for each color |
|
Display Color |
4 , 398 , 046 , 511 , 104 |
|
Refresh Frequency ( Hz ) |
≥ 9600 |
|
Picture display method |
Dots to dots display synchronized with CRT |
|
Signal interface |
DVI |
|
Input signal |
Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV |
|
Display format |
800 * 600 , 1024 * 768 , 1280 * 1024 |
|
Software |
Support windows series system |
|
Protection grades |
IP 65 |
|
Working temperature (ºC ) |
-10 +50 |
|
Humidity ( RH ) |
Up to 95 |
|
Stored temperature ( ºC) |
-30 +70 |
|
Screen Lifetime(hours) |
≥100, 000 |
|
Out of controlled dots |
≤3/10, 000 (Out of controlled dots means the pixels
and the wave length are both >10% |
|
Whole display flatnes |
Less than 1mm Juncture |
|
Maintance way |
Back-maintained or front-maintained, |
|
Switch power supply |
Switch power supply |
|
Power Consumption ( w /m 2 ) |
Max : 1200 , Average: ≥ 700 |
Competitive Advantage:
1, Good quality
2, Good price
3, Good 24hours service
