p16 SMD5050 mobile truck led display billboard
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen China |
|---|
Product Description
Product Description

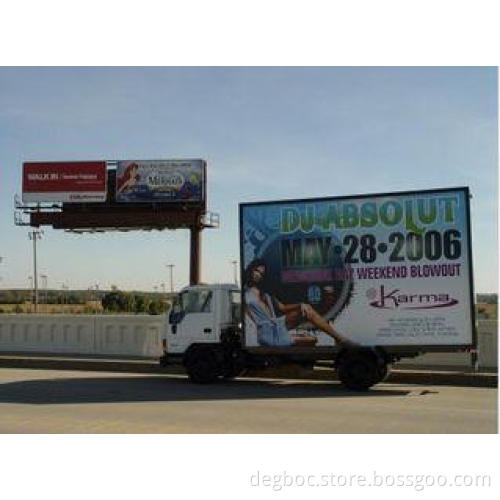

p16 SMD5050 mobile truck led display billboard
Specifications
besd full color mobile led screen
1. P10mm,P6 and P8 acceptable,
2. High quality,
3. Energy saving,
4. Anti-shock, waterpr
Melton full color mobile led billboard
1.Function and Technology Character
- Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
- Information source can be camera, video, VCD, DVD, LD, TV and so on.
- Clear picture without flicker and distortion.
- Brightness, contrast, saturation can be adjust by itself and manual.
- Show everything with your PC does synchronously.
- Super correcting technology for distortion.
- One interface for sound signal and two for video signal at least.
- Connected and controlled by PC via Lan and remote control.
- Multiform language editions, such as English, French, Germany, Greek, Russian and so on .
2.technical parameters:
| Pixel Configuration | SMD 5050(1R,1G,1B) | |
| Physical/Real pixel pitch(mm) | 10 | |
| Pixel density(dots/SQM)(physical/real) | 3906 | |
| Calibrated Brightness | 7500 nits(adjustable) | |
| Colour temperature | 3,500° — 9,500° K(adjustable) | |
| Contrast ratio | 4,000:1 | |
| Brightness Adjustment | 100 grade auto-adjustment | |
| View angle(degree)(50% brightness) | Horizontal: 160° (80° off center); Vertical: 160° (80° off center) | |
| Color Capability | 4.4 trillion | |
| Refresh rate(Hz) | >3600 Hz | |
| Frame frequency(Hz) | >60 Hz | |
| Interface port | DVI interface(DVI connector) | |
| Input signal | Video:PAL/NTSC Optioned:VGA,video,DVD,TV | |
| Protection grade | IP65 front side/IP54 backside | |
| Operating temperature(Celsius degree) | -20~+55' | |
| Storage temperature(Celsius degree) | -30~+65' | |
| Operation Humidity(RH) | 0-95% | |
| Storage Humidity(RH) | 0-99% | |
| Lifetime(hours)(50% brightness) | 100,000 hours | |
| Servicing | Front and Back | |
| Power supply | 100-240V/50-60HZ | |
| Screen Operation mode:static | 1 | |
| LED Drive | constant-current drive | |
| Power consumption(W/SQM):Maximum | 938 | |
| Power consumption(W/SQM):Average | 375 | |
Production Machine
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service.
