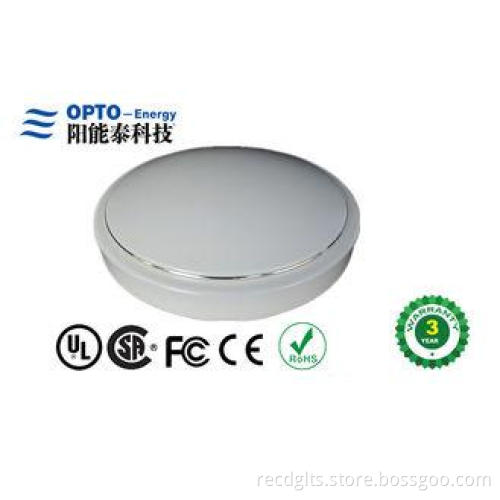

Round 18W Ra70 Recessed Led Ceiling Lights for Bedroon with Diameter 320mm
Specification:
18W Ceiling Light For Bedrood Lighting
Led Qty: 99pcs
Diameter:320mm
Input Voltage: AC85-265V
Flux: ≥1300lm
Color: Warm White/ Cool White/ Natural White
Led Type: SMD2835
Viewing Angle: 160 Degrees
Bottom Base Diameter: Dia220mm, 260mm, 320mm, 400mm optional
Cover Materials: Acrylic (Uniform Color/Anti Glare)
Working Temperature: -20℃~+45℃
Operating Humidity: 20%-90%
CRI:≥70Ra
Power Factor≥0.9
Led Life span: Above 30000 Hours
Advantages:
High Brightness SMD 2835 as Lighting Source
Isolated Led Driver
High Power Factor
Fast & Easy to install Led Ceiling Light
Cheap and Fashional Design
Energy saving up 85% compare with Traditional Recessed Ceiling Lights
Technical Parameter
|
Item |
Dia(mm) | Technical Parameter | |||
| 220mm | 260mm | 320mm | 400mm | ||
| Input Voltage | V | AC85-265V | |||
| Frequency | Hz | 50/60Hz | |||
| Input Power | W | 7±1 | 13±1.3 | 17±1.8 | 25±2.5 |
| Power Factor | PF | ≥0.9 | ≥0.92 | ≥0.92 | ≥0.92 |
| THD | % | ≤15% | ≤15% | ≤15% | ≤15% |
| Led Driver | Isolated | ||||
| Power Efficiency | % | 88 | 88 | 90 | 90 |
| Output Voltage | V | 21-24 | 36-42 | 24-28 | 36-42 |
| Current Output | mA | 300 | 300 | 600 | 600 |
| Led Type | SMD2835 | ||||
| Led Qty | pcs | 48 | 72 | 99 | 132 |
| Luminous Flux | LM | ≥650 | ≥1050 | ≥1450 | ≥1900 |
| CRI | Ra | ≥70 | ≥70 | ≥70 | ≥70 |
| Color Temperature | K | 3000-6500k | |||
| Angle | ° | 160 | 160 | 160 | 160 |
| Bottom Size | mm | ￠220*17 | ￠260*17 | ￠320*17 | ￠400*17 |
| Finished size | mm | ￠260*90 | ￠300*100 | ￠360*110 | ￠440*120 |
| Net Weight | kgs | 0.5 | 0.6 | 0.8 | 1.3 |
| Package size | mm | 31*11*31 | 31*11*31 | 37*12*37 | 46*13*46 |
| CTN Measure | mm | 68*33*66 | 68*33*66 | 74*39*78 | 67*48*94 |
Application:
Good Replacement for the traditional Ceiling Light board
In door lighting places:
Schools, Meeting Rooms, Show Rooms, Business centers, offices, Commercial Lighting,
Residential Lighting, kitchen Led Ceiling Lighting etc.
