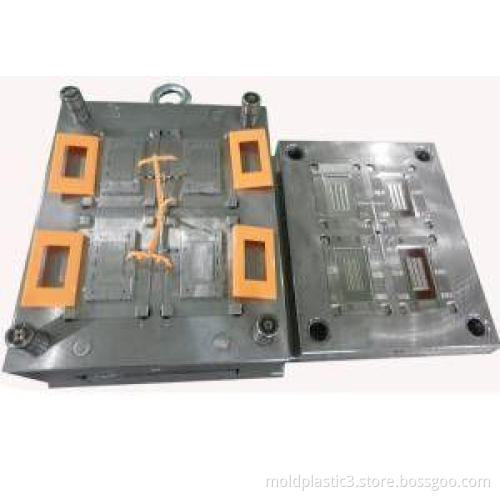

High Precision Custom Multi Cavity Mold For Electric Appliances With Compound Die

Quick Detail :

Model No. : DW-mould 217

Product : Electric Appliances

Installation : Semi Fixed

Shaping Mode : Injection Mould

Application : Electronic , Commodity , Household , Funiture

Export Markets : Global

Place of Origin : Guandong China ( Mainland )

Detailed Product Description :

Process Combination Type : Compound Die

Plastic Materials : PA, ABS, PP, Pet, PC, PE, HDPE, PA66, PVC, TPE etc

Injection System : Submarine Gate, Fan Gate, Pin Gate etc.

Mold Base Material : S50C,P20,S136 etc

Mould Cavity : Multi Cavity / Single Cavity

Mould Runner : Cold / hot or Yudo Runner

Mould core: Assab 8407, S136, 718H and so on

Mould Steel : P20 , H13 , 718h , Nak80 , S136 , 2311 , 2344 , 8407

Process Combination Type : Compound Die / Single - Process Mode

Plasitc Mould Gate : Sprue / Side / Sub / Winkle / Hot Runner

Plasitc Mould : Supply All Kinds Custom Mould

Plasitc Mould Base : LKM , DME , HASCO , FUTABA , MISUMI , PUNCH etc

Design & Program Soft Wares : CAD / Cam / Cae , Ug , Proe , Powemill , Solid Works etc

Application : Electronic , Household Appliances , Furniture , Commodity , Home Use

Application :

We are always committed to close cooperate with large mould and parts manufacturers around the world with years of experience , high production standard and a good reputation in mould manufacturing field . The leading moulds and parts include : automotive accessories , household appliances , consumer electronics , office automation , health care and medical instruments , etc

Specification :

Name	Contents
Mold Base	LKM , HASCO, DME ,TSMP,MISUMI ect.
Cavity material	45#,50#,2738,2343,DIN-1,S130,H13,2344,738H,718,8407,S136,NAK80,P20,KD-61,NIMAX ect.
Steel Hardness	20-60HRC
Treatment	Pre-Harden, Nitriding, Heat treatment, Quenching
Cavity No.	Single-cavity / Multi-cavity
Runner	Hot runner or Cold runner : YUDO/ MASTIP/ HASCO/ DME/ FISA/HUSKY/MOLD-MASTER/SYNVENTIRE/ANNTONG
Gate	Submarine gate, side/edge gate, direct gate ect.
Plastic Material for the Parts	PA, POM, ABS, PP, PET, PC, PE, HDPE, PA66+GF, PVC, TPE etc.
Mould Life	500K – 5millon shots at least
Design Software	Cimatron, UG,VISI,CAD, 3D MAX ,PRO-E, SolidWorks etc.
Process	CNC, High speed carve, EDM, Wiring-cutting, Drill, Polish etc.
Quality	ISO9001:2008 Certificate
Lead Time	20-40 workdays depends on the different products
Package	Wooden Case Package or according to customer requirement
Price Term	FOB Shenzhen, EXW Dongguan
Payment	50 % / 50%

Competitive Advantage :

1. HASCO,DME ,LKM ,FUTABA,PUNCH, MISUMI Standard etc.
2. Multi-cavity Mould, Over Moulding, Gas-assisted, Hot Runner Moulds, Double-coloured mould
3. Tooling Lead Time is as Short as Possible
4. Best Quality at a Reasonable Price
5. Always have 1 contact person during the whole project for both mold and molding. Every week update

the working process to clients.

6. Be on your service 24 hours , and make a specific quotation for you within a day.
