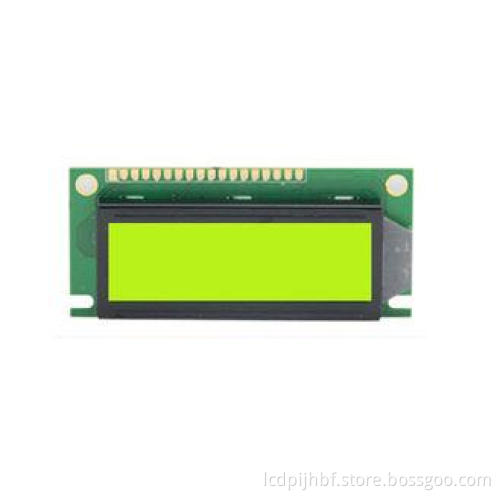

122*32C COB Monochrome LCD Module with Zebra for Electricity Application
Description:
1. IC Connection Method: COB
2. Viewing Direction: STN Yellow-Green / Blue Negative
3. Viewing Direction: 6 O'Clock
4. Backlight type & Color: LED, White / Yellow-Green
5. Driving Method: Duty 1 / 32 Bias 1/6
6. Control/Drive IC: PT6520
7. LCD Connection: Zebra
8. MCU Interface Type: 8 Bit Parallel mode
9. Main Component: LCD+Controller+PCB+BL+Zebra
Main Application
|
Wire tester |
Communications equipment |
|
Instrument & meter |
Car audio-visual |
|
Industrial equipment |
Home appliances |
|
Manipulator controller |
Consumption electronics |
|
Medical Equipment |
POS |
|
Electricity,Power Controller Device |
Beauty Equipment, |
|
Semi auto analyzer |
Medical Equipment |
|
ECG |
Injection Machine |
Essential Specification
|
COB TSC-G12232C Series |
|
|
Parameter |
Data |
|
Viewing Angle |
6’O CLOCK |
|
V.A. |
54.8*18.3 |
|
Dots |
122*32 |
|
Driving IC |
PT6520 |
|
Operation Voltage |
-18℃-+70℃ |
|
Storage Voltage |
-30℃-+80℃ |
|
Interface timing |
8-bit Parallel |
|
Connector |
ZEBER |
|
Driving Condition |
Duty 1/32 Bias 1/6 |
|
Weight |
30g |
The main model of 122*32A Series is as follows
|
P/N |
BL Voltage |
Module Voltage |
LCD Mode |
BL Color |
Contrast Ratio |
Outline Size(mm) |
|
TSC-G12232CDYSYZN-2 |
5 |
5 |
STN Yellow-Green |
Yellow-Green |
Adjustable |
76.4×29.1×7.6 |
Product Range
1. LCD Type: TN, HTN, STN, FSTN, VA
2. Any digitals, icons, graphic can be customized and designed according to your requirement
3. Polarizer type: Transmissive, Transflective, Reflective
4. Connector Type: FPC, Metal Pins, Zebra, Heat-seal
5. Glass thickness: 1.1mm, 0.7mm, 0.55mm
6. Various Backlight color available
7. IC Mounting Method: COB,COG,TAB etc
QC Process
1, Appearance
2, Temperature range
3, Black/White sports
4, Linear defects
5, Rainbows
6, Luminosity of backlight
7, Uniformity of backlight
8, LCD current
9, Character pattern
10, Backlight current
11, Contrast ratio
12, Respone time
General Bussines Clause
|
1 |
MOQ: |
100pcs |
|
2 |
L/T: |
2-4weeks on receipt of payment |
|
3 |
Trade Terms : |
FCA HK |
|
4 |
Payment: |
100% T T in advanc for samples , |
|
5 |
Warranty: |
12 months |
|
6 |
Package: |
Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
