TM043NDH02 4.3 inch Tianma TFT LCD Display Module WLED Back
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

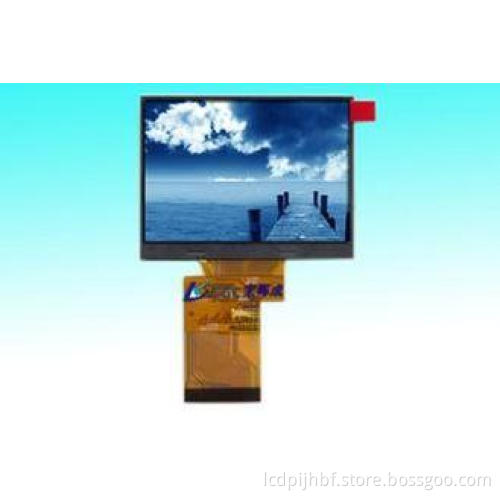

TM043NDH02 Tianma 4.3 inch tft lcd panel original and brand new TM043NDH02 for GPS/Mini TV use.
Description:
Tianma 4.3 inch tft lcd panel TM043NDH02, WLED backlight, wide screen, ideal for GPS/Mini TV and other similiar uses. Lower price provided. Tianma 100% original and brand new quality promised, 12 months of warranty!!
Essential Specification
|
Tianma 4.3 inch tft lcd (TM043NDH02) data sheet |
|
|
Module number |
TM043NDH02 |
|
Resolution |
480(RGB) x 272 |
|
Pixel Pitch |
0.198x0.198 (mm) |
|
Active Area |
95.04x53.86 (mm) |
|
View angle |
R/L/U/D 70/70/70/50(Deg) |
|
Mode |
TN |
|
LCD Surface |
Anti-Glare(3H) |
|
Number of Colors |
16.7M |
|
Electrical Interface |
RGB 24 bits |
|
Brightness |
300cd/m2 |
|
Contrast ratio |
500:1 |
|
Outline dimension |
105.50x67.20x2.90(mm) |
|
Weight |
44.1g(Typ.) |
|
Backlight |
WLED |
|
Supply Voltage (V) |
3.3V |
|
Response time |
20(ms) |
|
Operate temperature |
-20-70 (℃) |
|
Storage temperature |
-30-80 (℃) |
|
Package |
Tianma original package; 112 pcs/carton;Carton size: 530x350x250 mm. |
Main Application
|
Product |
Applications |
|
Small-size TFT LCD display |
mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
|
Mid-size TFT LCD display |
mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
|
Big-size TFT LCD display |
educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
|
TN/STN//FSTN/OLED |
elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
|
(2)Main Size of TFT LCD Display |
|
|
Size |
Resolution |
|
1.44" |
128*128 |
|
1.77" |
128*160 |
|
2.0" |
176*220 |
|
2.4" |
240*320 |
|
2.8" |
240*320 240*400 |
|
3.0" |
240*400 |
|
3.5" |
320*240 320*480 |
|
4.3" |
480*272 |
|
5.0" |
800*480 |
|
7.0" |
800*480 |
|
9.7" |
1024*768 |
|
(3)Customization Items for TFT LCD Display |
|
|
Size |
Resolution |
|
1.44" |
128*160 |
|
1.5" |
128*128 round type |
|
2.0" |
220*176,240*320,320*240 |
|
2.2" |
176*220,220*176,240*320,320*240 |
|
2.4" |
320*240 |
|
2.6" |
240*320,320*240,240*400 |
|
2.8" |
240*320,320*240,240*400 |
|
3.0" |
240*320 |
|
3.2" |
240*320,240*400,320*480,480*800 IPS full angle |
|
3.5" |
480*800,480*320,320*480 full angle |
|
4.3" |
480*272 high luminance |
|
5.0" |
800*480 high luminance |
6.Our Advantages
|
1 |
FOG automatical device can ensure the capacity of 6000,000 per month. |
|
2 |
MOQ can be 100pcs, lead time of standard products is 20 days. |
|
3 |
Reliability test and full examination to ensure the high quality of the display. |
|
4 |
OEM&ODM are provided for TFT/TN LCD |
|
5 |
Strictly ISO quality management system. |
|
6 |
Mature and Professional R&D and after service. |
|
7 |
Various cooperation experience with big brands. |
7.General Business Clauses
|
1 |
MOQ: |
1000pcs |
|
2 |
L/T: |
Samples in stocks,2-4 weeks for mass production |
|
3 |
Trade Terms : |
FCA HK |
|
4 |
Payment: |
100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
|
5 |
Warranty: |
12 months |
|
6 |
Package: |
Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
