Mini TV / GPS Tianma 4.3 Inch TFT LCD Touch Screen Monitor
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|

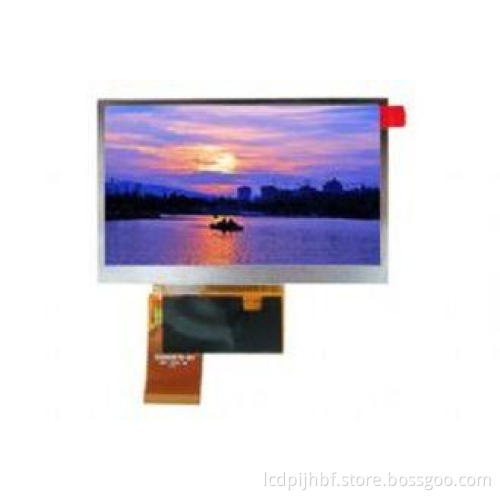

Tianma 4.3 inch tft lcd panel original and brand new TM043NDH02 for GPS/Mini TV use.
Description:
Tianma 4.3 inch tft lcd panel TM043NDH02, WLED backlight, wide screen, ideal for GPS/Mini TV and other similiar uses. Lower price provided. Tianma 100% original and brand new quality promised, 12 months of warranty!!
Essential Specification
Tianma 4.3 inch tft lcd (TM043NDH02) data sheet |
|
Module number |
TM043NDH02 |
Resolution |
480(RGB) x 272 |
Pixel Pitch |
0.198x0.198 (mm) |
Active Area |
95.04x53.86 (mm) |
View angle |
R/L/U/D 70/70/70/50(Deg) |
Mode |
TN |
LCD Surface |
Anti-Glare(3H) |
Number of Colors |
16.7M |
Electrical Interface |
RGB 24 bits |
Brightness |
300cd/m2 |
Contrast ratio |
500:1 |
Outline dimension |
105.50x67.20x2.90(mm) |
Weight |
44.1g(Typ.) |
Backlight |
WLED |
Supply Voltage (V) |
3.3V |
Response time |
20(ms) |
Operate temperature |
-20-70 (℃) |
Storage temperature |
-30-80 (℃) |
Package |
Tianma original package; 112 pcs/carton;Carton size: 530x350x250 mm. |
The main model of TIANMA is as follows:
TM022HDHT1 |
TM028HDH23 |
TM035KDH03 |
TM035HDHT1 |
TM035KBH02 |
TM035KDH04 |
TM035HBHT6 |
TM043NBH02 |
TM043NDH02 |
TM043NDH03 |
TM047NDH04 |
TM047NBH03 |
TM050RDH03 |
TM056KDH01 |
TM057KDH01 |
TM057QDH01 |
TM057KDH03 |
TM070RDH19 V1.1 |
TM070DDH07 |
TM070DDH12 |
TM070RDH10 |
TM070RDH13 |
TM080TDH01 |
TM080SDH01 |
TM097TDH01 |
TM097TDH02 |
TM097TDH05 |
TM104SDH01 V2 |
TM104SCH02 |
TM104SDH02 |
TM104SDH03 |
TM121SDS01 |
TM121SCS01 |
TMS150XG1-23TB |
TMS150XG1-10TB |
TM150SDH50 |
TM150TDSG52 |
TM032LDH24 |
T320HVN01.4 |
|
FAQ
1. Q:What Brand do you have?
A: AUO/Tianma/Innolux/Mitsubishi/CMI/Sharp/NEC/SAMSUNG
2 .Q:What is your delivery method?
A: DHL , UPS , FedEx ,TNT
3. Q:what’s your products condition?
A: Brand New,A grade,Original Package.
4 .Q: What is your guarantee time?
A: 1 year for A grade
5. Q: What is delivery time?
A: 2-7 days after payment is received.
6. Q: What payment term do you accept?
A: We accept payment terms: T/T, Paypal,Western Union
7. Q: what’s the certification your products get?
A:Rohs Compliant
8. Q: How long can you supply the industrial grade products?
A: at least 3-5 years
9. Q:what’s your MOQ of your products? A: NO MOQ
The more information about Team-Ants is as follows:
1) Product focus:
* Team-Ants is one of the main agents: AUO/Tianma/Innolux/Mitsubishi/CMI/Sharp/NEC/SAMSUNG 2)Lcd panel size range:
* 2.2 inch to 24 inch with stable supplied;
3) Quality promise:
* All the panels are 100% original and brand new, no fake panels, quality promised; And also Provided 12 months of warranty, you can return any fake panels and charges by us, so from here you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them;
4) With The most competive price and quickly delivery for batch order :
* Here will send the products from the original factory directly , so from here you can get the most competitive price with long relationship with original factory;.
* We also have international logistic center in Hongkong to support your batch orders.We can delivery the goods from Hongkong directly avoiding the VAT for China govenment. so from here you can get more competitive price and quickly delivery;
5) Products for Application range:
Aviation, POS, ATM, Kiosk, Marine, Medical, MFP, E-signage,gaming,Pachinko,facotry automation etc.
6) Our parters:
* Products are sold to more than 20 countries, regular supplier of Marvell(USA),Moran AV(Israel), EUROCOMPOSANT(Franch),ELMAK srl(Italy), Russian Federation(OOO West-Ost ) etc., so from here you can get more stable supplying promise;
7) After-Sale service:
*Team-Ants will support original factory technology service before and after sale for all your project, you can send back all the fack panel and here will change a new panel for you;
8) To choose the best TFT LCD solution:
Main Application
Product |
Applications |
Small-size TFT LCD display |
mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
Mid-size TFT LCD display |
mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
Big-size TFT LCD display |
educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
TN/STN//FSTN/OLED |
elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
7.General Business Clauses
1 |
MOQ: |
No MOQ |
2 |
L/T: |
2-7days on receipt of payment |
3 |
Trade Terms : |
FCA HK |
4 |
Payment: |
100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
5 |
Warranty: |
12 months |
6 |
Package: |
Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
