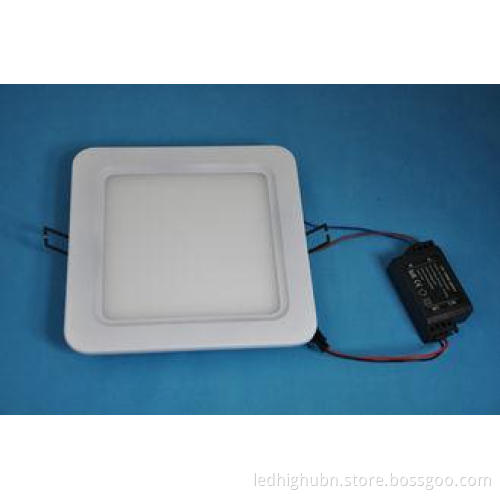

7 Inch, Milky White Frame Ultra Slim 12W 180mm Square LED Ceiling Panel Lighting, Epistar SMD3528, 180x180x26mm, Hole Size 165mm
12W 180mm Square LED Ceiling Panel Lighting Description:
The 12W Square LED Ceiling Panel using Epistar LEDs, has advantages of high lumen, ultra slim, high optic uniformity and low optic attenuation. All kinds of color temperature are available from 2700K-7000K. The 12W Square LED Ceiling Panel is easy to install and maintenance free. Milky white frame, irony white frame as well grey frame are available.
12W 180mm Square LED Ceiling Panel Lighting Features:
1. The whole panel with top quality light effect, instant start, no UV & heat radiation, no electric wave, no flickering, no humming, it’s an ideal green and environmental lighting.
2. New inner high efficient (95%) heat protection system, the constant current driver can work under unstable voltage.
3. Safe and durable, can be cyclic utilization, no such hazard for lead or Mercury enter the environment.
4. The whole lamp is with high safety coefficient. With wide working voltage, low power consumption, and low heat dissipation, no potential safety hazard.
12W 180mm Square LED Ceiling Panel Lighting Specification:
|
Rated Voltage |
AC85-265V |
|
Power Factor |
>0.9 |
|
Power Efficiency |
>85% |
|
Withstand Voltage |
3000V one minute |
|
Power supply type |
Constant Current or Constant Voltage |
|
LED Chips |
Epistar SMD3528 |
|
LED Quantity |
140pcs |
|
LED Power |
12W |
|
LED Efficiency |
80-90LM/W |
|
Light Efficiency |
>85% |
|
Uniformity |
>0.5 |
|
Led Initial Flux |
650LM |
|
Color Temp. |
2700-7000K |
|
Beam Angle |
120º |
|
CRI |
75-80Ra |
|
Junction Temp. |
<70℃ |
|
Operation Temp. |
-20~+50℃ |
|
Storage Temp. |
-30~+80℃ |
|
Protection Grade |
IP52 |
|
Dimension |
180 x 180 x 26mm |
|
Punch Size |
165 x 165 mm |
|
Net Weight |
359g |
|
Lifespan |
>50000H |
|
Warranty |
3 Years |
|
Certificate |
CE,RoHS, Ctick |
12W 180mm Square LED Ceiling Panel Lighting Applications:
* Commercial and exhibition locations
* Hotel, conference room
* Factory, office, house, warehouse
* Airport, metro-station, supermarket
* School, hospital,
12W 180mm Square LED Ceiling Panel Lighting Dimensions:
12W 180mm Square LED Ceiling Panel Lighting Optic Attenuation:
12W 180mm Square LED Ceiling Panel Lighting Distribution Graph
12W 180mm Square LED Ceiling Panel Lighting Connection:
