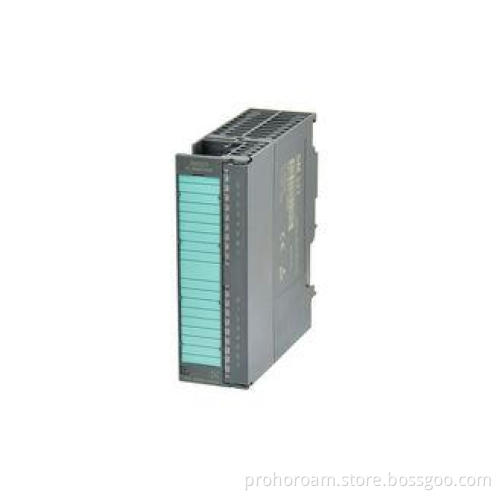

Digital PLC output Module UniMAT IO Expansion module For Si
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
China produced PLC expansion module, compatible with Siemens S7 300 and Step 7, can replace Siemens and work with Siemen
Detail description
1. Expanding digital input module,
2. Digit inputs 16
3. High immunity
Specification
|
Product Description |
16DI,24VDC; High immunity;stable |
|
Power consumption |
|
|
·From bus current consumption |
17mA |
|
·Power loss |
3.5W |
|
Number of digital inputs |
16 |
|
Cable Length (Shielded) |
1,000m |
|
Cable Length (unshielded) |
600m |
|
Input voltage |
|
|
·Rate value |
24V DC |
|
·For ”0” signal |
-30~5V DC |
|
·For ”1” signal |
13~30V DC |
|
·Frequency range |
/ |
|
Input current |
7mA |
|
Input delay |
|
|
·From “0” to “1”,Min |
1.2~4.8ms |
|
·From “1” to “0”,Min |
1.2`4.8ms |
|
Front connector |
20-pin |
|
Input type |
NPN |
|
Connection of 2-wire BERO sensor |
Yes |
|
Permissible quiescent current |
1.5mA |
|
Isolation tested for contact |
|
|
·Between channel and backplane bus |
Yes |
|
·Per group between channels |
Yes |
|
The status indicates |
Green LED each channel |
|
Dimensions(WxHx D)(mm) |
40×125×120 |
