19264 4.3" STN LCD Text Display Mono Green - Yellow Backlig
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

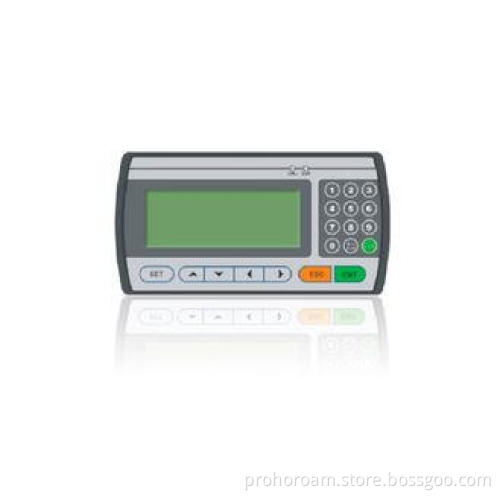

4.3 ” Green - Yellow STN Text Display UNFE1043
Description
1. 4.3" STN LCD wide Temp: -20C-60C
2. Resolution: 192*60
3. Backlight: LED
4. ABS Shell
5. USB Download / USB
6. CE & ROHS, High EMC protection
Specification
|
Display: |
4.3” STN |
|
Resolution (WXH): |
192×64 |
|
Colors: |
Mono (yellow-green backlight, black font) |
|
Brightness (cd/m2): |
60 cd/m² |
|
Back Light: |
LED |
|
Back Light Life Time: |
50000 Hrs |
|
Touch Panel Type: |
N/A |
|
CPU: |
32 Bit 72MHz ARM RISC |
|
Memory: |
128K FLASH |
|
RTC: |
Build in |
|
Ethernet Port: |
N/A |
|
Shuttle |
1043 N/A and 1043E is |
|
Film Button |
Metal Dome Foil , more lifetime |
|
USB Port: |
1 USB Device Port |
|
Program Download: |
Through the USB Device Port |
|
Series Port: |
COM0:RS232/RS485/RS422 |
|
Electrical Specifications: |
|
|
Power Consumption: |
< 4W |
|
Input Power: |
DC 12/24V,Input Range : DC 9V~36V |
|
Power Protection: |
|
|
Permit Power Lose Time: |
< 5 mS |
|
CE & ROHS |
EN61000-6-2:2005,EN61000-6-4:2007,ROHS |
|
Environment Specifications: |
|
|
Operating Temperature: |
Minus 10~50℃ |
|
Storage Temperature: |
Minus 20~70℃ |
|
Operation Humidity: |
10~90% RH (No condensation) |
|
Vibration Endurance: |
10~25 Hz (X,Y,Z 2G/30min) |
|
Cooling Way: |
Natural air cooling |
|
Others: |
|
|
Protection Structure: |
Front IP65 (With NEMA panel),Back IP20 |
|
Mechanical structure: |
ABS + PC |
|
Panel Cutout (WXH): |
165mm×86mm |
|
Out Size: |
185.8mm×96.2mm×35.6mm |
|
Weight: |
300g |
