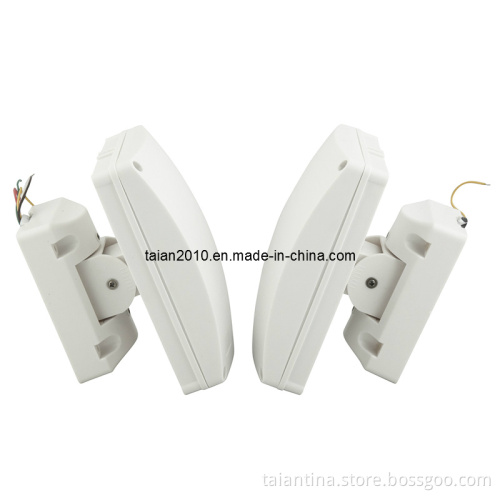

Crow Intelligent Outdoor Microwave Barriers Detector, Mw IR Beams (CSB-100/150/200D)
- Payment Type:
- T/T, L/C, Western Union, Paypal
- Min. Order:
- 5 Pair
- Min. Order:
- 5 Pair
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Israel |
|---|---|
| Productivity: | 5000PCS/week |
| Supply Ability: | 100000 |
| Payment Type: | T/T,L/C,Western Union,Paypal |
| Certificate: | CE, UL |
| Transportation: | Ocean,Land,Air |
CSB-150D 150m Outdoor
CSB-200D 200m Outdoor
The CSB 2000 Digilon is the ideal choice for protecting high risk sites such as Power Stations, Prisons, Military installations, High risk industrial areas etc etc.
Features:
1. Detect human intruders walking, running or crawling.
2. Quick and easy installation on pole, fence or wall.
3. No maintenance required.
4. High RFI & EMI immunity
5. Protection of high security areas
6. Power failure protection and backup
7. Multi-level sensitivity adjustment
Model
CROW CSB-200D
Microwave frequency
9.5GHz
Modulation frequency
1.0KHz
Maximum transmitting power
35mW(continues)50mW(peak)
Scope(length of protection zone)
Max.200m
Lobe width
Approx.5m
Lobe height
Approx.2.5m
Rated power supply voltage
12^24V
Relay contacts values
N.C 28Vdc,maximum current 0.1A
Alarm period
3 sec(Max.)
Tamper switch
N.C 28Vdc maximum current 0.1A-open when cover is removed
Detection speed(target velocity)
0.1^10m/sec
Remote testing
Built-in-self-test generator simulates actual intrusion signals
Flatness of ground
Approx.0.3m
Maximum height of grass on the ground
0.3m
Maximum height of snow on the ground
0.5m
Alarm output-swiching cover of relay contacts for the time
Minimum 3 sec
Dimensions of unit(Trans./rec.)
158*113*46mm
Weight(T,R and accessories)
1.1kg
Operating temperature range
-40° C-+60° C
Weatherproofing
All openings with gasket and sealed
conformal coated circuit board
