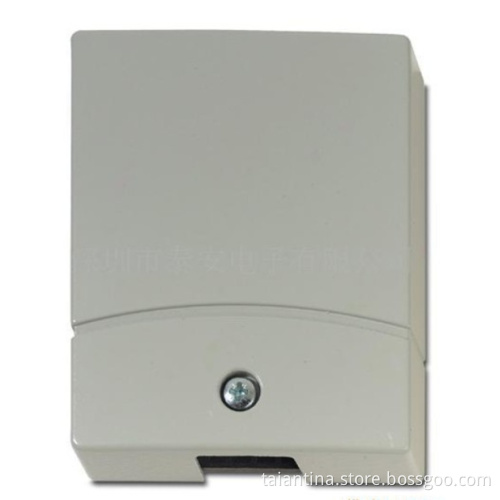

Ge Vibration Detector, Seismic Detector for ATMS(VV600/602PLUS)
- Payment Type:
- T/T, L/C, Western Union, Paypal
- Min. Order:
- 20 Piece/Pieces
- Min. Order:
- 20 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000PCS/week |
| Supply Ability: | 100000 |
| Payment Type: | T/T,L/C,Western Union,Paypal |
| Certificate: | CE |
| Transportation: | Ocean,Land,Air |
VV602-PLUS Seismic Detector for ATMs and Night Safe Deposit Boxes
Specifications:
Input power 9 to 15 VDC, 2 V pk-pk
Current consumption Nominal 8.6 mA
Alarm output Form A solid state relay, max series resistance 35 ohm
Alarm indication LED-indication screw no. 3
Sensitivity adjustment 5 steps of approx. 6 dB each
Test output Screw no. 4 for measuring ambient noise level
Detection range 3 to 14 m radius. See Installation Manual for planning Purposes
Tamper protection Temperature 84° C, drill shield, opening contact, pry-off Contact
Low voltage alarm 7.5 V
IP rating IP30
Operating temperature -20 to +55° C
Relative humidity 90% at 30° C
Dimensions (W x H x D) 81 x 101 x 28 mm
The VV600/602 Plus series seismic detectors are designed to detect attempts to break into vaults, safes, night deposit boxes, automatic teller machines (ATMs) and other reinforced physical areas such as data storage's and filing cabinets. The VV600 Plus Series is a next generation development based on proven high technology electronic processing with excellent secure detection without false alarms. Not only with a new look but also designed for the highest security with full-scale tamper protection and two possibilities of testing.
SPC
Mini ATM Vibration selective Motion detector, Seismic Detector
Model
GE VV602-PLUS
Power Supply
From 9 to 15V, max. ripple 2V pp, nom. Value 12V
Current consumption
24mA max
Alarm output
SPTS NC relay capacity 100mA at 30V(3w) opens in alarm for approx.1/2 second
Tamper output
Micro-switch capacity 100mA at 30V(3W)
Alarm Indicator
Led remote output for VT608/VT609; at rest=negative ;alarm on=contact open
Adjustment
Potentiometer with 5 settings,6db each setting
Range
See table above
Anti-tamper Protection
Withstands temperatures of 84° C,anti-rilling shield, contact against magneticfields,antiopening device and cut off,low electricity supply(under 7V)warning cicuit
MTBF
240,000 Philips method
Operating temperature
de+5° C to +40° C
Ralative humidity
90%
electrostatic discharges 20KV max
electrical discharges 1.5KV to 0.4mJ max
Dimensions
80*100*30mm(H*L*D)
Colour
Gray RAL 7035
Weight
0.5KG
