Quick Turn Prototype Circuit Boards Fabrication Service for NPI
|
Circuit boards |
Quick turnaround |
Standard Lead time |
|
Single Sided Prototype |
12 hours - 72 hours |
3 days - 8 days |
|
Double sided Prototype |
12 hours - 90 hours |
4 days - 9 days |
|
Multilayer Prototype |
72 hours-144 hours |
5 days - 10 days |
|
Single Sided Medium run |
3 days - 8 days |
6 days - 10 days |
|
Double sided Medium run |
5 days - 9 days |
7 days - 14 days |
|
Multilayer Medium run |
6 days - 10 days |
7 days - 16 days |
Description:
In order to help customers to reduce time-to-market, capture the market to seize the initiative we Agile Circuits offer PCB prototype quick turnaround, both prototypes and small volume production batches. Our quick turn circuit boards fabrication service for single sided, double sided to multilayer boards. Standard fast delivery offered as well as 24 hours, 48hours quick turnaround.
Specification:
|
Layer count |
Single sided, 2L, 4L,6L,8L,10L-26 Layers |
|
Base material |
FR4, High Tg FR4, CEM-3, Aluminum Base, Copper core, High frequency, Polyimide (PI), Polyester(PET) ,Rogers RO4350,Polyimide,Teflon,Getek Copper Clad Thermal Substrates |
|
Board thickness |
0.2mm, 0.4mm, 0.8mm, 1.0mm. 1.2mm.1.6mm.2.0mm-2.4mm, 3.2mm,4.0mm |
|
Maximum Board Size |
580mmx700mm |
|
Copper thickness |
0.5oz, 1oz, 2oz ,3oz., 4oz,5oz,6oz |
|
Minimum Hole Size |
0.2mm |
|
Minimum Trace/Space |
4mil/4mil |
|
Surface finish |
HASL(Hot Air Solder Level), Pb Free HASL , Electroless Nickel and Immersion Gold (ENIG), Plating Gold, Gold Fingers (Gold Connector), Silver Immersion, Organic Surface Protectant (OSP), Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG),Hard Gold |
|
Solder Mask |
Green, Red, Blue, Black, Matte Green, Orange |
|
Silk Screen |
White, Yellow, Black |
|
PCB Fabrication |
Scoring, Route, V-Score, Counter Sink, Bevel, Cutouts and Slots |
|
Quality Control |
IPC 6012 Class 2, Electrical Testing, Flying probe Testing, 100% Netlist Testing |
|
Special Technology |
Impendence Control, Differencial PCB printed circuit board, Peelabemask PCB , High Density PCB HDI, Heavy copper PCB ,Metal Core circuit boards ,Copper Clad PCB printed circuit board, Blind & Buried Vias, Laser Drilled Vias, Burn-in Boards,Flex Boards, Rigid Flex PCB printed circuit board , Edge half plated thru hole Circuit boards, Selective Plating Hard Gold, Special Thin or Special Thick PCB board, PCB with Resin Plugged Hole
|
Applications:
Speaker, Digital Wrist Watch, Audio and Video Equipment, CD Player, AM/FM/Radio/Alarm Clock, Television, Guitar electronics, Calculator, Digital Coffee Pot, Digital Cameras CCD- and CMOS-cameras, Microwave Oven, Home Alarm Systems, Housing electronics, Cooling and Washing machine, Home Computer, Home Theater/Stereo Surround Sound System, Cable Television Converter Box, Hand Held Video Games, Digital and analog Switching, Remote control electronic toys, Disk Drive duplication systems, LOJACK auto recovery system, Electronic Television Audience Measurement Systems/Electronic Audience Measurement Systems,Mobile Telephone, Point to Point Microwave Transceivers, Radio frequency (RF) system,Police/ Fire/ Rescue Radios, Communicating and non-communicating HVAC control products, Digital Network Equipment, SatCom transceivers, Sound and Vision Broadcasting, Commercial and Private Aircraft Radios and Instrumentation, Transformer, Broadcasting & Cable TV, Cell Telephone Relay Stations, television and mobile multimedia transmission, CB Radio/2 Way Walkie Talkies ect.
Advantage:
- No MOQ, low cost for small quantity prototype. We panelize prototype circuit boards on a big panel which will share set-up cost with other customers, which could save a lot PCB tooling cost for small quantity PCB prototype.
- PCB manufacturing on spec. We have professional engineering in the each production process from evaluating cost, checking and assessing Gerber requirement, making MI to production and final inspection to guarantee circuit board quality.
- Meeting your printed circuit board needs from PCB prototyping to mid-volume production
- ISO/TS certified PCB manufacturing factory.
- Deliver on time. We keep higher than 95% on-time-delivery rate
- Combined service to arrange your PCB to you by DDU TO DOOR shipment with competitive shipping cost. You don’t need to arrange anything after confirm the order just wait for your PCB deliver to your hand.
- Offer free DRC for DFM to our customer.
- Decades experience in supporting manufacturing PCB requirement from a wide range of industries

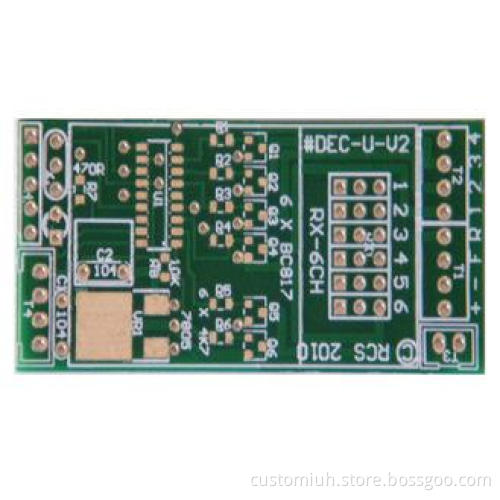

Product PCBs View:
