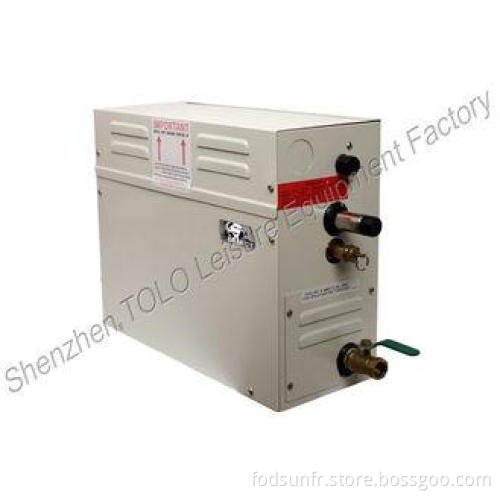

220v - 240v Grey Sauna Steam Generator Cuboid for residenti
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
KSA-N40 steam generators with galvanizing and powder coated shell 4.0kw/220v-240v for residential
Quick Detail:
- Type: Wet Steam Sauna
- control panel: digital and optional
- Power output: 4.0kw
- voltage: 220V~240V
- Current: 18.2A
- Main Material: stainless steel tank, galvanizing and powder coated shell
- Color: grey or white
- phase: single
- Shape: Cuboid or round
- Size: 395*153*313mm
- Room volume(cubic meter): 3~5
- Usage: steam sauna room
- working time: 1~60 minutes or long time
- Heating: heat elements
- Power source: Electric
- Time Setting: 1-60mins
- Temperature range to control: 95 F degree~131 F degree
- Temperature range to show on control panel: 43 F degree ~140 F degree
KSA-N series steam generator also is with stainless steel water tank, the galvanizing and powder coated shell is anti-corrosive and durable.
It is designed for residential. It has over-pressure protection and auto water feeding system. It is an Economic model.
220v - 230v Grey Sauna Steam Generator Cuboid for residential
Description:
This KSA-N Economic steam generator has 4.0kw, 5.0kw,6.0kw,7.0kw,8.0kw and 9.0kw for your choice.
The Economic steam generator is specialized for residential bath room or small business which only requires simple functions. Normally the Economic steam generator is less than 9KW, 220-240V single phase and equipped with manual drain valve. Customization such as larger power size (more than 6KW), 380-415V three phases power supply or auto drain function could be realized on customers' requirement. The reliable and efficient Economic steam generator is a best-buy for customers with budget.
KSA-N could equip with 2 kinds of control system.When KSA-N equipped with R30, a safety timer will automatically switch the generator off after 45 minutes. If equipped with TM60A, both the remaining working time and room temperature will be displayed on the panel. You could set temperature to the range of 35-55 C(95-131 F), and working time to 1~60 minutes or "CH" non-stop mode. To eliminate mineral building up, please manually drain the steam generator frequently.
The Economic steam generator features auto water feeding system, over-pressure protection and etc. A perfect choice for residential bath room or small business.
Applications:
For 2~4m³ residential and small business steam baths.
Parameters:
|
Model |
Power kW |
Power supply (50/60Hz) |
Power wire (copper) N*mm2 |
Dimensions cm |
Packing size cm |
Gross weight kg |
|
|
Voltage V |
Current A |
||||||
|
KSA-N4C |
4.0 |
220-240V~ |
18.2 |
3*2.5 |
39.5*15.3*31.3 |
53.5*21*41 |
9 |
|
380-415V3N~ |
6.1 |
5*1.5 |
|||||
|
KSA-N5C |
5.0 |
220-240V~ |
22.7 |
3*2.5 |
|||
|
380-415V3N~ |
7.6 |
5*1. |
|||||
|
KSA-N6C |
6.0 |
220-240V~ |
27.3 |
3*4.0 |
|||
|
380-415V3N~ |
9.1 |
5*1.5 |
|||||
|
KSA-N7C |
7.0 |
220-240V~ |
31.8 |
3*6.0 |
44.5*18.2*31.3 |
53.5*21*41 |
11 |
|
380-415V3N~ |
11.4 |
5*2.5 |
|||||
|
KSA-N8C |
8.0 |
220-240V~ |
36.4 |
3*6.0 |
|||
|
380-415V3N~ |
13.6 |
5*2.5 |
|||||
|
KSA-N9C |
9.0 |
220-240V~ |
40.9 |
3*10.0 |
|||
|
380-415V3N~ |
13.6 |
5*2.5 |
|||||
|
Notice :KSA-N series Economic steam generators come with one group of heating elements and standard manual drain valve. Auto drain valve could be installed on request. |
|||||||
KSA-N40 KSA-N50 KSA-N60
KSA-N70 KSA-N80 KSA-N90
- Control panel with Digital display
- Control panel used the advanced inducing technology
- Controls sauna temperature 35 degree to 55 degrees
- Controls sauna time 1 minute to 60 minutes or long time
- Automatically shuts down when water level is too low
- Temperature high limit switch
- Waterproof grade: IPX5
- Auto protection: boil dry protect, pressure balancing valve,
- Auto function: auto water inlet ,auto power off
Competitive Advantage:
Factory Direct!
Stainless steel elements for long life.
Commercial!
Durable!
