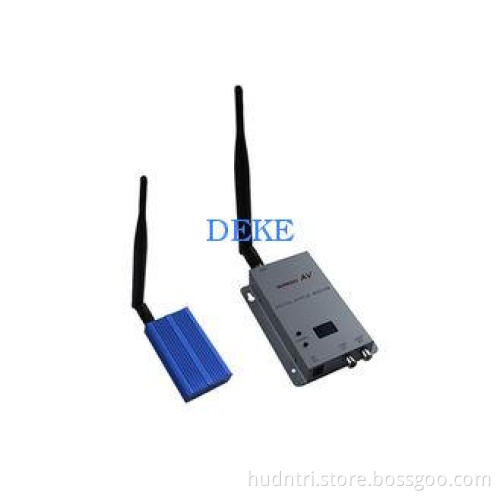

15 Channel Wireless Audio Video Transmitter
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
wireless audio video sender transmitter receiver
1).1.2GHz frequency 15 channels adjustable
2).1500mW power, long range upto 1500M
3).With RCA input and output
4).12V DC voltage input
1.5W 15 Channel Wireless Audio Video Transmitter For Surveillance
Description:
1).1.5W wireless transmit 1.2GHz frequency .Few interference and high quality ,no delay .
2).15 Channel for optional , few interference .
3).Video and audio transmit at the same time .
4).Handy ,can be used on the area plane model .
Applications:
1).Wireless baby care monitor
2). Wireless security surveillance
Specifications:
• Transmitter:
|
Working Voltage |
DC 12V |
|
Working Ctrrent |
600mA |
|
Output Frequency |
0.9-1.2GHz |
|
Channel Number |
15CHS |
|
Output Power |
1500mW |
|
Video Output |
1 Vp-p(FM) |
|
Audio Output |
1 Vp-p(FM) |
|
Audio carrier ware |
5.5M 6.0M |
|
Diemsion(L*W*H) |
88*52*20mm |
|
Figure Color |
blue |
|
Unobstructive Effective Range |
300~1500 Metres |
|
Operation Temperature |
-10℃~+50℃ |
• Receiver:
|
Working Voltage |
DC 12V |
|
Working Ctrrent |
250mA |
|
Output Frequency |
1.2GHz |
|
Channel Number |
28CHS |
|
Video Output |
1 Vp-p(FM) |
|
Audio Output |
1 Vp-p(FM) |
|
Audio carrier ware |
5.5M 6.0M |
|
Weight |
126g |
|
Diemsion(L*W*H) |
115*80*21mm |
|
Figure Color |
silver |
|
Receiver Ingenious |
-85dBm |
|
Operation Temperature |
-10℃~+50℃ |
Competitive Advantage:
1).1.2GHz frequency 15 channels adjustable
2).1500mW power, long range upto 1500M
3).With RCA input and output
4).12V DC voltage input
