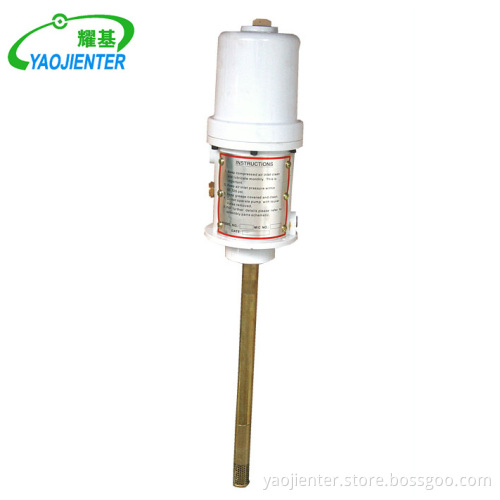

Pneumatic Engine Oil Pumps

\ Article 50327 50394 50527 50594
Compression ratio 3: 1 3: 1 5: 1 5: 1
Air inlet connection G 1/4" G 1/4" G 1/4" G 1/4"
Grease delivery connection G 1/2" G 1/2"G 1/2"G 1/2"
Working pressure 4~8 bar 4~8 bar 4~8 bar 4~8 bar
Noise-level 81 dB 81 dB 81 dB 81 dB
Air consumption 260 lt/min 260 lt/min 260 lt/min 260 lt/min
Capacity (free outlet at 6 bar self-levelling grease 20° C16 L/min16 L/min 18 L/min18 L/min
Length suction tube 270 mm940 mm 270 mm 940 mm
Diameter suction tube 42 mm 42 mm 42 mm 42 mm
Suitable for drums 200L200L
(N/G) Weight(N/G) 7.8/8.8Kg12/14Kg 7.8/8.8Kg12/14Kg
