Digital Call Recorder PRO with Phone Line Recording

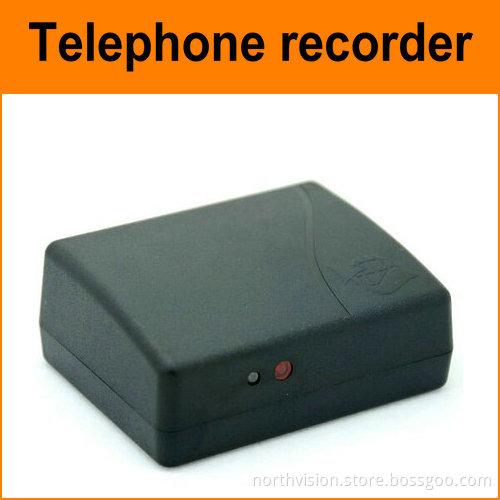

TR90 Digital call recorder pro for phone call recording, with remote control and automatic phone call recording

Introduction to the product
This phone line recorder (phone call recording) is recording equipment specially designed for monitoring on fixed-line telephone communications.

Function introduction:
1) Remote control
Recorded data can be accessed without contacting the controlled telephone end
A: Remote playback of record files
B: Remote copying of files (two telephone recorders shall be used together)

2) Local playback
Recorded files can be played back by the unit even there is not a computer nearby
Recorded files can be directly played back by the telephone recorder without connecting it to a computer.

3) Recording data of specified numbers
Storage space can be effectively used
Ten groups of specified telephone numbers can be set; Only the calls of the specified numbers are recorded and the calls of the other numbers will not be recorded by the system.

4) Notifying the control telephone end
The information recorded at the controlled end (slave) will be known at earliest time possible
When there is information newly recorded in the telephone recorder at the controlled end (slave), the system will automatically dial the telephone number of the control telephone end in 10 seconds after the information is recorded to inform the monitoring party that there is a new record at the controlled telephone end.

5) Automatic record overwriting in turn (with the function of protecting the data of specified telephone numbers from being deleted)

6) Automatic answer
Calls can be answered and recorded automatically when nobody answers the call
Message can be recorded in advance; When nobody answers an incoming call, the system will automatically answer the call and play back the message.

7) Time and number display
Time of each recorded information and the telephone number communicated with the controlled end (slave) are provided to the user
The time displayed for the record files includes year, month, day, hour, minute, second and total duration.

Parameters:
Bit rate of voice data: 64KBPS
Voice format: MP3/ADPCM
Format of calling number display: FSK/DTMF
Detection of outgoing calls: DTMF
Security: 6-figure user password
TF card capacity: Max2G; About 37 hours of conversation can be recorded in 1G
File system: FAT32
Power interface: 5PIN USB
Power supply: 4.5V-5.5V, 300mA
Power consumption: Recording: 56mA; Data transmitting: 36mA;
Stand-by loss with card: 500uA;
Pop-up of TF card: 50uA
Battery specifications: 4.2V— 1200mAH
Battery life: About 10 hours for recording and 10 hours for playing
Time for full charge with external power supply: 3 hours.
Electromagnetic compatibility: Accordance with FCC standard
Operating environment temperature: -10~60° C
Operating environment moisture: 20%~80%
Size: 72mm*49mm*26mm
Weight: 136g (Li-battery included)

Accessories:
CD
USB cable
USB interface power
RJ11 telephone line
Remote control
TF card
Requirements for computer system
Processor: Above Pentium III
Hard Disk: Above 210 Gb
Memory: Above 56Mb
Operation System: Post Windows 2000

Note: ThisDigital call recorder pro is manufactured by Northvision.
