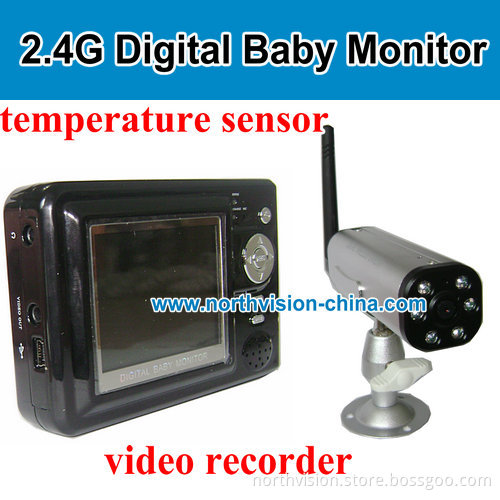

2.4G Digital Baby Monitor with Camera Built-in Battery, Supportingt Video Recording, Range 200m (NC-699R)

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union, cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Money Gram, Western Union, cash

Product Description

2.4g digital baby monitor with camera built-in battery, supportingt video recording, range 200m (NC-699R)

Product Features
1. High accepting sensitivity, strong anti-interference ability and good transmission confidentiality.
2. Adopting FSK modulation.
3. Signal carrier frequency 2.400-2.483 GHz;
4. Data transfer rate 256Kbps;
5. Output power≥ 16dbmW; Barrier-free transmission distance on sea surface is greater than 300 m
6. Data buffer and burst data transmission, displaying of signal quality;
7. Supporting infrared night vision function.
8. Supporting temperature sensing function.
9. Powerful digital features, you can use microcontroller for high-performance RF system;
10. Resolution 320 × 240; Recording file 450MBT per hour
11.2.5 " TFT display
12. Built-in lithium battery, fully charged machine can last 3H
13. AVI Supporting video recording in AVI format

Main Technical Parameters:

Comprehensive parameters	Operating frequency	2.40GHz
	Modulation mode	FSK
	Signal reception range	200m
	Operating temperature	-20/60
	Operating humidity	20%-80%
Parametersof receiver	Resolution	VGA 320 X240
	Standard	NTSC/PAL
	Reception	2.4G digital audio and video signals
	Sensitivity	≤-85dbm
	Frame per second	25-30 frames
	Memory card	Maximum support 32GB SD card
	Power	DC:5V 1A
	Dimension	105mmX75mmX25mm
	Lithium-Ion battery	3.7V 750mAh
	Net weight	450 G
Parameters of transmitter	Image sensor	1/4"CMOS Image sensor
	Effective pixels	CCIR:640X480
	Lens	6mm
	Minimum illumination	0.001Lux when taking F1.2
	Signal to noise ratio	More than 48db
	Signal system	CCIR
	Output	Audio and video digital signal, support night vision function
	Transmitting power	≥16dbm
	Power	DC:5V 1A
	Lithium-Ion battery	3.7V 1300mAH
	Dimension	105mm×30mm×25mm
	Net weight	350 G
