4-24V 90 Degree Micro Aerial Camera

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

Model: MC900-V9-W

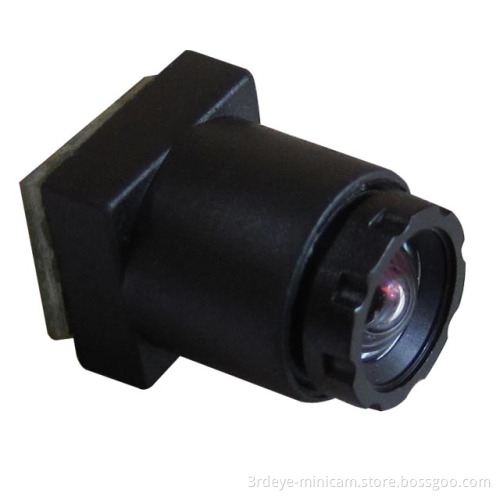

It's an ultra small high definition CCTV camera with excellent night vision.
Size is 10.5X11.5X18mm only, Weight is 1g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
90degree wide view angle provides broad surveillance field.
Full TV system. Applicable worldwide.

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Ready AV/BNC cable and power supply cable. Just plug & play!

Contents
Mini camera X1; RCA/BNC cableX1; AC adapter X1

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC: 656 ( H ) × 492 ( V )	PAL : 786 ( H) × 576 ( V)
IMAGE SIGNAL PROCESS	Digital Signal Processing System
SENSOR DIMENSION	4.75mm ( H) × 3.55mm ( V )
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2: 1 Interlace
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	0.5mm F2.0 /90 °
S/N RATIO	52dB
ELECTRONIC SHUTTER	OUT ( 1/60 S TO 1/100000 S)	OUT ( 1/50 S TO 1/100000 ) S
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
SIZE (L x W x H)	10.5x10.5x18mm
WEIGHT	2g
WORK CURRENT	70mA
POWER REQUIREMENT	DC 4V-24V
OPERATING TEMPERATURE	- 10° C ~ +50° C, less than 90% RH
Connection	PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT
