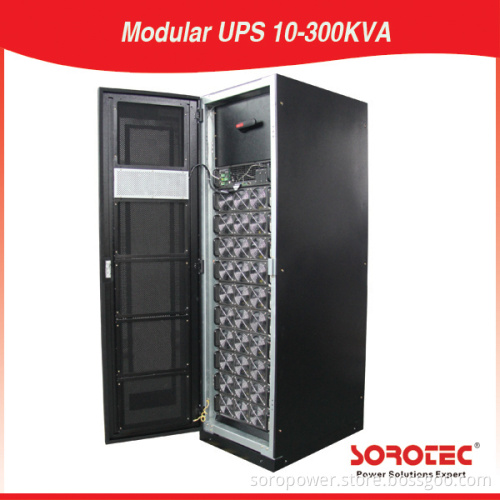

Large Power Smart Battery Backups Modular UPS 10 - 300kVA

N+X Module Online UPS MPS9335C 10KVA to 300kVA Pf=0.9

Key Features:

1.   Superior energy saving and environment-friendly:
      Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%

2.   Superior capability of powering load:
      Output PF is 0.9, no need of power deration with load of leading or lagging PF

3.   Easy-to-install:
      Top or bottom cabling, no need of input cabling cabinet.

4.   Easy-to-maintain:
      Full front access, UPS, failed part can be replaced shortly

5.   Easy-to-modify:
      The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the
      legacy system; moreover, the battery cell can be replace in time when it fails without interrupting the normal
       operation of UPS.

6.  6-inch extra large LCD
      can display 12 language(Chinese,English,Russian,Spanish,French and so on )

Applications :
IDC Internet Data Center, computing center, ISP (Internet Service Provider ), Telecom, Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.







Technical Specifications of Modular UPS, MPS9335 10-300KVA
