LCD Display AC to DC Inverter

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

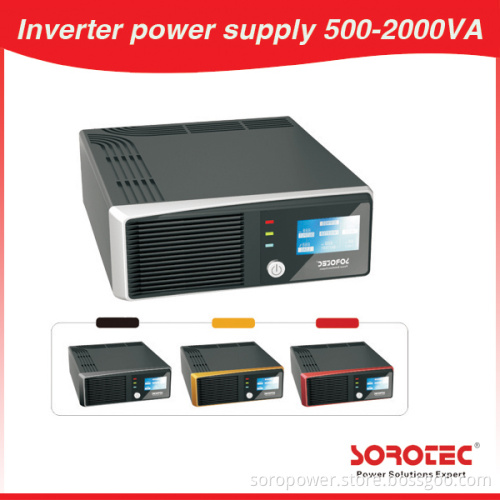

LCD display AC to DC inverter IG3110C Series 500-2000VA

Key Features:
1. LCD Display

2. Full automatic and silent operation

3. Rack Tower design

4. High Frequency

5. Off mode charging

6. Compact size for convenient use and storage

7. Built-in 8AMP super charger for up to 100Ah battery

8. Small scale and cost effective inverter for home appliances and office equipment

9. Two - steps intelligent charging control to recharging time

Technical Specifications of LCD display Inverter IG3110E 500-2000VA

Model		IG 3110C 500-2000VA
		500-12	1000-12	2000-24	1000-24
Capacity		500VA/300W	1000VA/600W	2000VA/1200W	1000VA/600W
Nominal voltage		220/230/240VAC
Nominal frequency		50/60Hz
Input
VoltageRange		176VAC-280VAC(±3VAC)
FrequencyRange		50/60Hz
Output
Voltage Regulation		220/230/240VAC±2%
Frequency Regulation		50/60Hz+0.1Hz
Wave Form		Modified sine wave
Switch time		Standard 2~4ms Typical 6ms
Current
Charge Current		10A	10A	10A	6A
DC Voltage		12V	12V	24V	24V
Overcharge Protection		15V	15V	30V	30V
Display
LCD		AC,battery ,fault, etc
Operating Environment
Temperature		0 ºC~40ºC
Humidity		5%~95%(<40ºC,no condensation)
Storage Temperature		-25ºC~55ºC
Elevation Noise (within 1 metre)		Less than 1500 meter <45dB
Physical
Weight(KG)	Net weight	2.0	2.5	2.5	2.0
	Gross weight	2.2	2.7	2.7	2.2
Dimension:WXDXH mm		224×225×80
