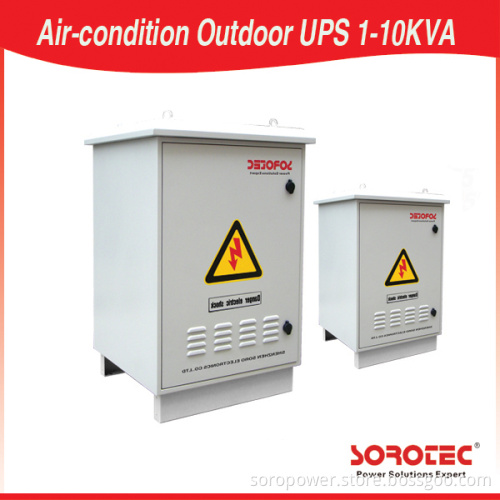

1KVA to 10KVA Outdoor Traffic Light UPS

KEY FEATURES:
1. SORO outdoor Intelligent High Frequency Online UPSS provide continuous pure sine wave AC power supply for outside communications/network equipment.

2. Wall mounted outdoor UPS, Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP31; with the wide range of input voltage and frequency of input window(-45%+35% rated voltage and +-10% rated frequency). In many remote areas of China after a severe test of the grid).

APPLICATIONS:
This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature(+50° C)/ low temperature(-40V), severe dust, moisture, rain, mist erosion, every poor power quality(voltage durative higher than 260V or less than 160V, Frequency abnormal change) in the area.

Technical Specifications of Outdoor UPS HW9110E Series

Model		HW9110E 1-10KVA
		1KVA	2KVA	3KVA	6KVA	10KVA
Capacity		1KVA/0.7KW	2KVA/1.4KW	3KVA/.1KW	6KVA/4.2KW	10KVA/7KW
Nominal Voltage		220/230/240VAC
Nominal Frequency		50HZ/60HZ
Input
Voltage Range		115~295VAC(±3VAC)			176~297VAC(±3VAC)
Frequency Range		50HZ:(46HZ~54HZ); 60HZ:(56HZ~6HZ)
Soft Start		0~100% 5sec
Power Factor		0.98
Output
Voltage Precision		223/230/240x(1±2%)
Frequency Precision		50/60HZ±0.05HZ
Power Factor		0.7/0.8(Optional) Standard 0.7
Wave Distortion		Linear load<3% Non-linear<6%
Overload Capability		Overload(110%~150%)for 30 seconds,then automatically transfer to bypass.when load is normal,it can automatically transfer to normal mode.
Crest Factor		3:1
Transfer Time		0ms (AC to DC)
Battery
DC Supply Voltage		36VDC	96VDC	96VDC	240VDC	240VDC
Charge Current		4A/8A(optional)	4A/8A(optional)	4A/8A(optional)	4.2A	4.2A
Internal Battery Caoacity		(38/65/80/100AH)optional
Panel Displsy
LED		Load level/Battery level,Battry indicator,Unility Power,Bypass,Overload,Fault
Communications
Communicate Interface		RS232\SNMP Card(optional)
Work Environment
Temperature		-40 ° C ~50 ° C
Humidity		0~95%(Non-condensing)
Storage Temperature		-25 ° C ~55 ° C
Elevation		<1500m
Physical Characterisstics
Weight(KG)	N.W	85	125	125	150	155
Dimensions(WxDxH)mm		613x60x954	650x753x1227	650x753x1227	940x940x1770	940x90x1770

Our Service

1. Samples
Samples are Available for Testing and Market Test.

2. Warranty of Soropower Products
Soropower provides warranty against defects in materials and workmanship for its Uninterruptible power supply,Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers ("Product").

3. Guides and After-service Consultancy
Soropower Team will offer these guides below.

A. Need an Accessory?

B. Products Repair?

C. Power Problems to Solve?

D. Power Protection Solutions, etc.?

24Hours After service consultancy just for you and to make your problems to solve easily.
