Telecom Embedded Power System

48V 60A Embedded power system
High power density
Chinese and English display function
RS485 Communication function

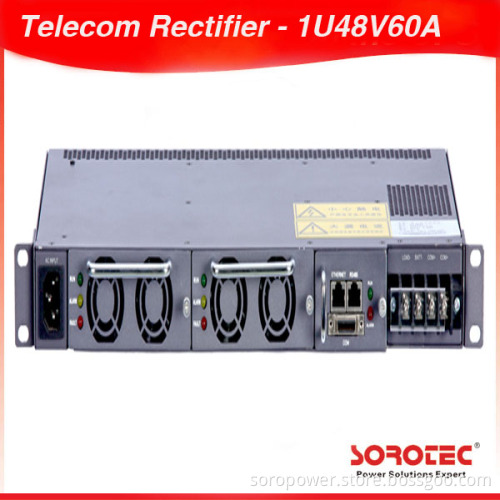

SP1U-48V60A Embedded Power system
Application:
Small SPC exchange
AN(access network)
Transmission equipment
Moving communication
SP1U-48V60A Embedded Power system Main Technical Parameters
1. AC Input;
Rated input voltage: 220V
AC input Voltage range: 85-300V
AC input Frequency range; 45-66Hz
Power factor: ≥ 0.99
Efficiency: >92%
2. DC Input
Rated voltage; 48V
Voltage range: 42-60V
Rated Current; 20A/30A/40A/60A
Load shunt; 1 road load total connecting terminal
Battery shunt; 1 road battery total connecting terminal
Battery LVD; 60A× 1
Mode of connection; Former connection wire
Rectifier Module; SR4810, SR4815, SR4820, SR4830
Monitoring Module; STM-111
Safety characteristics;
Input ----output 3000VAC/10mA//1min
Input---- chassis 2500VAC/10mA//1min
Input---- chassis 500VAC/10mA//1min
Environment;
Operating temperature; -40-+70° C
Humidity; ≤ 95% non-condensing
Dimensions(W. H. D): 482.6*44*280(mm)
Weight(Kg); 6kg (include rectifier module)
