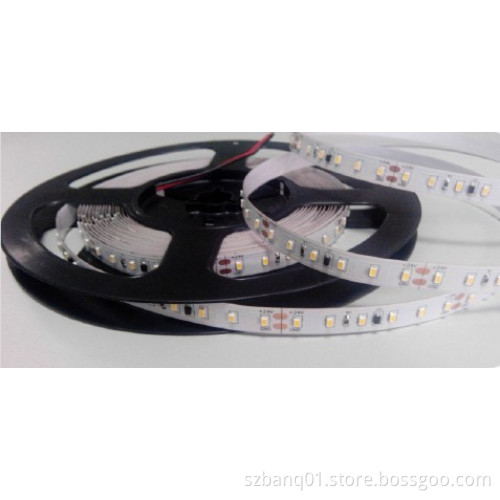

SMD3014 Concolorous Non-Waterproof 24V Constant-Current Flexible LED Strip Light

Parameter:
Model No: BQ00-3014W120HL24-W10-IP20
Input voltage: DC23V-28V
Power: 14.4W/m
Size: 5000MM*10MM/ roll
Wavelength: Red: 626-630nm, Green: 520-525nm, Blue: 465-470nm
Luminous flux: 1200LM/m
LED quantity: 120LED/m
LED quantity/unit: 6leds
Color: Yellow/red/blue/green/warm white/pure white/cool white
Beam Angle: 120degree
Working temperature: -40C-+50C
Storage temperature: -50C-+60C

Product Feature:
1. Very flexible, it can be turned according to your requirements, when the led light is turned on, the led strips are crystal and look more three-dimensional than the normal led strips

2. Adopting high quality and high brightness SMD3014, wide-angle, the light is evenly, low light decay;

3. Every 6leds for a unit and cuttable, many ways to install, very convenient

4. Our products has long life-span with constant current driver.

5. Adopting high quality FPCB, good electric conduction and heat dissipation, safe to use;

6. Widely used in home and car decorations, sign, advertising signboard, public house, jewelry counter, place of entertainment, etc. Any colors can be customized, show you absolutely visual effects.

Installation:
Power supply: Using 23-28V consistent voltage.
Power supply configuration: We recommend one 80W
Power supply for 5meters led strip.
Connection: Notice the anode and cathode,
Please don't be opposite connecting.
Cutting: 6LEDs for a unit, can be cut on every 6leds
