3.5'' Industrial Mother Board with Onboard Intel Atom D525 Dual-Core1.8g (PT-P3525)

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Western Union

Product Description

Main feature:

Intel ATOM D525 Dual-Core1.8G
Support 5*RS232, 1*RS485
Support DC12V Power supply
ON Board DDR3 2G Memory

Introduction

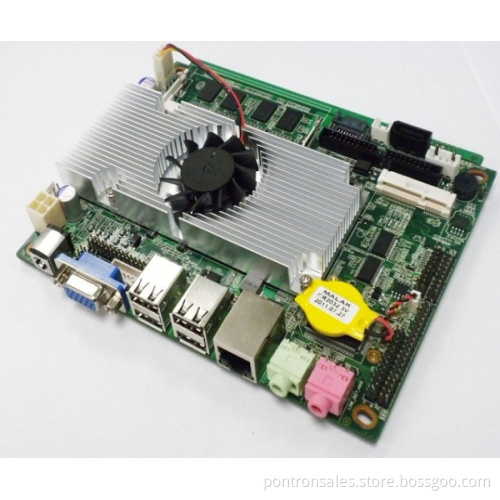

PT-P3525 is 3.5'' industrial grade mother board with smart structure, Fanless design. It's onboard Intel ATOM D525 Dual-Core1.8G CPU, Intel Intel D525+ICH8 chipset, onboard DDR3 2GB memory, Max up to 4GB. It also has 1*Mini PCIE expansion slot. It can be used industrial Box PC, MINI PC, industrial grade equipment, automation etc.

CPU	Intel ATOM D525 Dual-Core1.8G
Chipset	Intel D525+ICH8
Memory	ON Board DDR3 2GB,Max 4GB
Storage	2 x SATA,1 x 44P IDE
Expansion Slots	1 x MINI PCIE
Back Panel I/O Port	1 x DC12V Input
	1 x VGA
	4 x USB2.0
	1 x RJ45 10/100/1000M LAN
	1 x AUDIO LINE OUT\MIC IN
Internal I/O Port	5 x RS232,1 x RS485 header
	2 x USB2.0 header
	1 x LPT header
	1 x GPIO header
	1 x 18-bit LVDS Connectors
	1 x VGA header
	1 x 4Pin power Input header
	1 x SPDIF header
Power supply	DC12V IN
Dimension	155 x 117mm
Operating Temp	0°C ~ 60°C
Storage Temp	-20°C ~ 80°C
Storage Humidity	5~90%@40°C(non-condensing )
