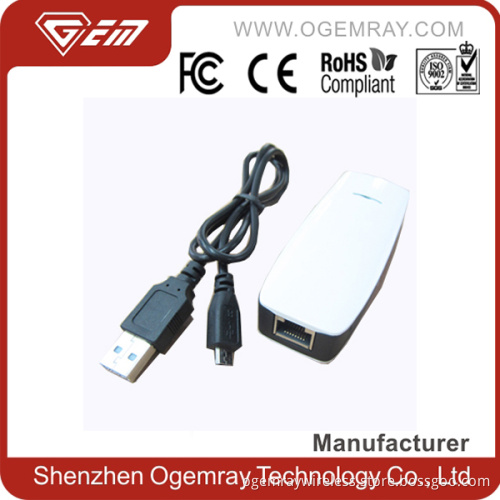

3G 150Mbps Mifi Wireless Router with 2000mAh Power Bank
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
1.3G hotsport + mini WiFi AP + power bank
2.2000mAh USB power bank
3. Support WiFi Media Sharing function
4.150Mbps peak rate
Product features
WLAN performance:
Frequency range: 2.4GHz—2.4835GHz
Transmission distance: 100m indoors, 200m outdoors. (depend upon environment)
RF output power: 11g/n: 12~13/14~15dBm, 11b: 17~18dBm.
Antenna type: Built-in 1dBi ceramic antenna
Portable charger:
Battery: 2000mAh, duration 3.5—8 hours
Charging current capacity is 960mA, charging interval is 4.5 hours.
Network function:
Embedded NAT firewall with SPI, the device supports PING, MAC Address, IP address and content filtering toward URL and domain name, has general network function such as virtual server, VPN penetration, port trigger, DMZ, DDNS.
Software management
Embedded configuration guide elfin is easy for installation and operation. Upgrade the latest firmware easily through web configuration. Specific emergency
Software recovery can ultimately avoids collaps due to failture of software upgrading.
Physical characteristic
Size: 95.0mmX34.5mmX18.0mm
Weight: 65g
Battery indicator:
Show remaining charge: In whatever status it's, press charge indicating button (beside
Switcher) to view charge balance in terms of the
LEDs' status. (4 lights being all on means full charge. )
View charging status: Plugging an external adapter, blue LED being on shows it's charging now, and blue LED being off shows full charge.
Environmental conditions:
Operating temperature: 0°C--+40°C(32—104°F)
Humidity: 10%--90%(Non-condensing)
Configuration
Once devices with WiFi enabled or Ethernet connect with the router, type the default address(192.168.100.1) through browsers in them, a check dialog box pops up, and then input the account and password (both is "admin" by default), have access to the Webpage for configuration.
Default networking mode is 3G. If it needs to switch into WiFi mode or Ethernet mode, please access the configuration webpage.
Network access
The device supports 3 networking approaches: 3G/ADSL/wireless WISP.
3G: Push the swither to "R" position, default mode is wireless 3G. Insert wireless network card into USB port, and the device will be able to dial-up automatically without any settings.
Cable bandwidth internet access: It contains 3 modes: DHCP, PPPOE, STATIC. This is the same way as PC accesses Internet via Ethernet port.
WiFi networking: Like WiFi cards, in the WiFi mode setup window, click "start scanning", and it should display nearby APs, select preferred AP (by SSID), type its security mode and password if needed.
Charging operation instructions on digital devices
Shutdown charging: Push swither to "c", connect power lines of digital products to USB port on the router, at this time the device will charge iPhone /iPad/Android smartphone, etc.
Startup charging: Push swither to "R", connect power lines of digital products to USB port on the device, here the device will charge iPhone /iPad/Android/smartphone, etc.
2.2000mAh USB power bank
3. Support WiFi Media Sharing function
4.150Mbps peak rate
Product features
WLAN performance:
Frequency range: 2.4GHz—2.4835GHz
Transmission distance: 100m indoors, 200m outdoors. (depend upon environment)
RF output power: 11g/n: 12~13/14~15dBm, 11b: 17~18dBm.
Antenna type: Built-in 1dBi ceramic antenna
Portable charger:
Battery: 2000mAh, duration 3.5—8 hours
Charging current capacity is 960mA, charging interval is 4.5 hours.
Network function:
Embedded NAT firewall with SPI, the device supports PING, MAC Address, IP address and content filtering toward URL and domain name, has general network function such as virtual server, VPN penetration, port trigger, DMZ, DDNS.
Software management
Embedded configuration guide elfin is easy for installation and operation. Upgrade the latest firmware easily through web configuration. Specific emergency
Software recovery can ultimately avoids collaps due to failture of software upgrading.
Physical characteristic
Size: 95.0mmX34.5mmX18.0mm
Weight: 65g
Battery indicator:
Show remaining charge: In whatever status it's, press charge indicating button (beside
Switcher) to view charge balance in terms of the
LEDs' status. (4 lights being all on means full charge. )
View charging status: Plugging an external adapter, blue LED being on shows it's charging now, and blue LED being off shows full charge.
Environmental conditions:
Operating temperature: 0°C--+40°C(32—104°F)
Humidity: 10%--90%(Non-condensing)
Configuration
Once devices with WiFi enabled or Ethernet connect with the router, type the default address(192.168.100.1) through browsers in them, a check dialog box pops up, and then input the account and password (both is "admin" by default), have access to the Webpage for configuration.
Default networking mode is 3G. If it needs to switch into WiFi mode or Ethernet mode, please access the configuration webpage.
Network access
The device supports 3 networking approaches: 3G/ADSL/wireless WISP.
3G: Push the swither to "R" position, default mode is wireless 3G. Insert wireless network card into USB port, and the device will be able to dial-up automatically without any settings.
Cable bandwidth internet access: It contains 3 modes: DHCP, PPPOE, STATIC. This is the same way as PC accesses Internet via Ethernet port.
WiFi networking: Like WiFi cards, in the WiFi mode setup window, click "start scanning", and it should display nearby APs, select preferred AP (by SSID), type its security mode and password if needed.
Charging operation instructions on digital devices
Shutdown charging: Push swither to "c", connect power lines of digital products to USB port on the router, at this time the device will charge iPhone /iPad/Android smartphone, etc.
Startup charging: Push swither to "R", connect power lines of digital products to USB port on the device, here the device will charge iPhone /iPad/Android/smartphone, etc.
