Fast 10/100m Base 2 Fx Port + 100m Base 1 Tx Port Fiber Ethernet Switch
- Payment Type:
- T/T, Paypal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Payment Type: | T/T, Paypal, Western Union |
Product Description
Product Description

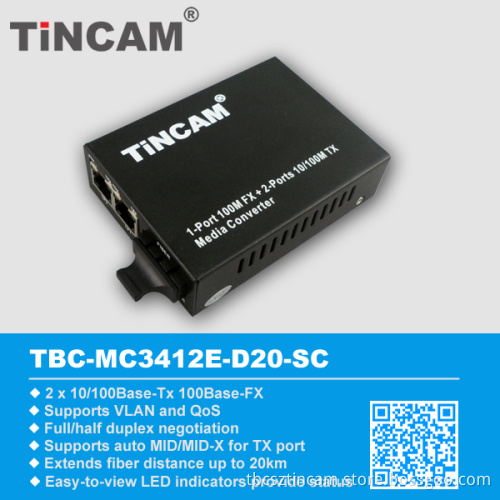

10/100m 2 Fx Port + 1 Tx Port Fiber Ethernet Switch (TBC-MC3412E-S20-SC)
Overview
IEEE802.3z/AB 1000Mbps 2 port Gigabit Ethernet Switches supports two types media for network connection and switching such as 10/100/1000Base-T and 1000Base-SX/LX. The switch is designed with controller and buff memory that connects two types segments to operate smoothly. The Switch with 2 RJ45 port 10/100/1000Base-T and 1SFP port 1000Base-T/SX/LX. All support only 1000Mbps and Full-Duplex modes. With external power unit, it provides good stability and reliability.
Specifications
The Four Port Gigabit Ethernet Switch conforms to the follwoing standards:
Standards: IEEE802.3z/AB 10/100/1000Base-T 1000Base-SX/LX/ZX
UTP Cable Cat. 5e or Cat. 6 cable up to 100m.
Fiber Cable: 1000SX: 50/125, 62.5/125 µ M mplti-mode
1000LXZX: 8.7/125.9/125µ M single-mode.
Data Transfer Rate: RJ45 port 10M, 100M, 1000mBPS, SFP 1000Mbps.
LED Indicators (5× 2): TPx100, TPx1000, TPx Link /Act, SFP1, SFP2, PWR, (x 1-5)
Duplex Modes: RJ45 port N way Full/Half, Duplex auto-negotiation, SFP full-duplex mode
Power Requirement: 220V(100-260V)AC, 50Hz, DC5V/2A
Ambient Temperature: 0~50° C
Humidity: 5%~90%
Dimensions: 30high× 140 width× 100 length (mm)
Overview
IEEE802.3z/AB 1000Mbps 2 port Gigabit Ethernet Switches supports two types media for network connection and switching such as 10/100/1000Base-T and 1000Base-SX/LX. The switch is designed with controller and buff memory that connects two types segments to operate smoothly. The Switch with 2 RJ45 port 10/100/1000Base-T and 1SFP port 1000Base-T/SX/LX. All support only 1000Mbps and Full-Duplex modes. With external power unit, it provides good stability and reliability.
Specifications
The Four Port Gigabit Ethernet Switch conforms to the follwoing standards:
Standards: IEEE802.3z/AB 10/100/1000Base-T 1000Base-SX/LX/ZX
UTP Cable Cat. 5e or Cat. 6 cable up to 100m.
Fiber Cable: 1000SX: 50/125, 62.5/125 µ M mplti-mode
1000LXZX: 8.7/125.9/125µ M single-mode.
Data Transfer Rate: RJ45 port 10M, 100M, 1000mBPS, SFP 1000Mbps.
LED Indicators (5× 2): TPx100, TPx1000, TPx Link /Act, SFP1, SFP2, PWR, (x 1-5)
Duplex Modes: RJ45 port N way Full/Half, Duplex auto-negotiation, SFP full-duplex mode
Power Requirement: 220V(100-260V)AC, 50Hz, DC5V/2A
Ambient Temperature: 0~50° C
Humidity: 5%~90%
Dimensions: 30high× 140 width× 100 length (mm)
