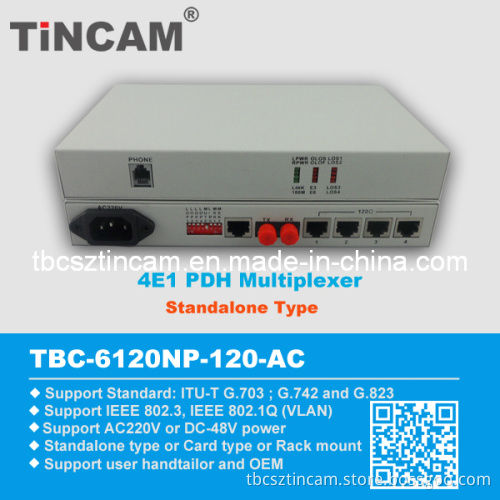

4e1+1phe100m Pdh Multiplexer

1.1 Function Description
This model can multiplex to 4 E1 signals for transmission over an optical fiber,
Resulting in reaching a longer distance without a repeaters and superior performance
Compared to copper media.
This model is the 4E1 point-to-point optical transport equipment that uses the
FPGA chips and it is easy to upgrade. It is single board structure and the largest
Transmission capacity is 4E1. The outer design use the standard 19 inches rack, so the
Volume is little, weight is light and operation is convenient and credit.
The multiplexer adopts the PDH fiber transmission technologies. The 2M (E1)
Interfaces can connect with the exchanger, light loop device and multi-diplexer directly
To form the mircomidi or the special network. Complete alarm function for the model, it
Is stable and easy to maintenance, install and small in size. It has one digital service telephone.

1.2 Features
Below lists the features for this model:
Provides 4E1 transparent transmission.
Has complete alarm function and can monitor remote device status.
The supervisory control interface implements centralized monitoring and export
The monitor and control information of the local model and the remote one.
One link of 10/100M Ethernet for option.
One link to service telephone for duty contract for option.
Embodies the feature of making a distinction between the remote device power
Fail and fiber cut by means of indicators.
AC220 & DC-48V power options and the positive and negative of DC-48V can
Be optional because there is the self-test circuit for the polarity inside the device.

Standard 19inch/ 1U mount, little volume, light weight, steady capacity and convenient setup.

10/100Base-T Interface
Rate 10/100M, full/duplex auto-negotiation
Protocol Support IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Entiries 4096 Entiries
Connector RJ45
Optical interface:
Optical interface: SC/PC, FC/PC, LC SFP for option
Optical Wavelenth: FP1310 nm /DFB1550nm+/-50/40nm
Sending consumption: -9dBm/-5dBm
Receiving and dispatching module: >-6dBm
Optical receiver receiving sensitivity: <-36 (BER<10-10):
Dynamic range receiving: >-30dB
Optical code: NRZ
Transmitting range: SM 20Km/ 40Km/ 60 Km/ 120Km for option
Operation Condition:
Input voltage: AC220V, AC165V~AC265V; DC-48V, DC-36V~DC-72V
Consumption: ≤ 5W
Operating temperature: -10° C ~ +50° C
Storing temperature: -40° C ~ +70° C
Relative humidity: 95 %
