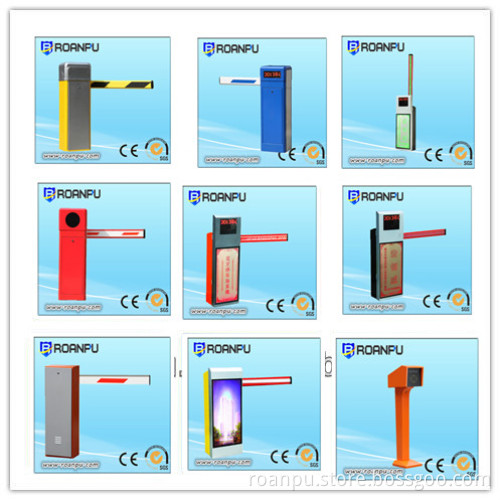

Automatic Vehicle Arm Barrier Gate with LED Light (RAP-P3)

Automatic Vehicle Arm Barrier gate with LED light

Automatic Vehicle Arm Barrier Parameters:
Maximum straight boom length:
3m
3s type
4.5m
6s type
6m

Opening and closing times:
1.5s/3s/6s

Voltage: 220V/110V +-10%

Frequency: 60Hz/50Hz

Motor power consumption: 100W

Working temperature: -40° To 85°

Housing dimension: 343(Width)*283(Depth)*1015(Height)mm

Weight not including barrier boom: 38kgs
Drive: Torque motor
Maximum Remote Control Distance: 30m

Automatic Vehicle Arm Barrier Features:
1. Integrative machine core: All part is made by mold, so all parts can be more accurate. And so the barrier gate can be much more stable;
2. Left or right installed can be amendable. Customer can amend install direction by himself.
3. Accurate link mechanism: Link mechanism can release arm's shake and motor load, so the barrier gate can move more stable and barrier gate's working life can be more longer;
4.70W turbine worm transmission deceleration induction motor: Drive Steady, Noise Lower, Structures Compact, can realize self-locking;
