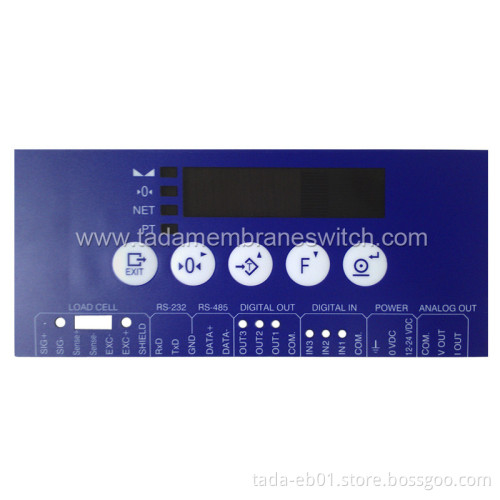

Membrane Switch - 13

Country of Origin:
China (mainland)
Primary Competitive Advantages:
Packaging
Price
Product Features
Product Performance
Prompt Delivery
Quality Approvals
Reputation
Service
Small Orders Accepted

Main Export Markets:
Eastern Europe
North America
MID East/Africa
Central/South America
Asia
Western Europe
Australasia
Key Specifications/Special Features:
Features:
Auto-type materials
20-piece buttons, all keys are metal dome tactile style
Female connector at tail
Customized colors and sizes are accepted
Specifications:
Electrical:
Maximum circuit rating: 100mA at 35V DC, 1W
Contact resistance: 10 to 500Ω
Insulation resistance: 100MΩ , 100V
Dielectric withstand: 250Vrms
Contact bounce: ≤ 5ms

Lifespan:
Flat type: ≥ 5, 000, 000 times
Tactile type: ≥ 1, 000, 000 times
Mechanical:
Actuation force:
Flat types: 57 to 284G
Tactile types: 170 to 397g
Switch stroke:
Flat types: 0.1 to 0.5mm
Tactile types: 0.6 to 1.5mm
Temperature:
Operating: -40 to 80° C
Storage: -40 to 85° C
Humidity range: 90 to 95% RH, 240 hours
Vibration: 20G
Dimensions: 100 X 100mm
