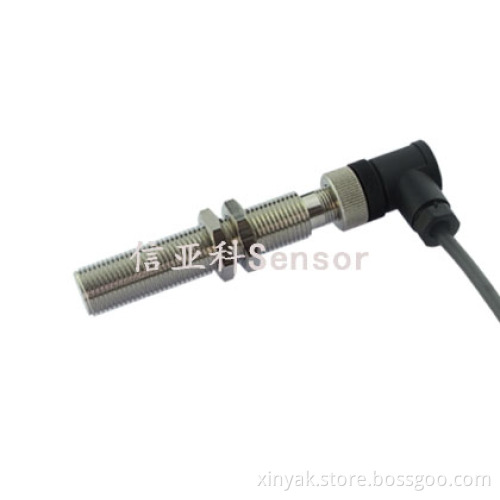

Speed Sensor, Magnetic Sensor, Speed and Direction Detection

Typical usage:
Cement mixer barrel forward & reverse rotation monitoring
Product feature
1. Output dual stable pulse signal (square wave), the phase difference is 90 degrees
2. Anti-jamming design, can stably work in harsh environments of vehicles or motors
3. Wide response frequency 0-15KHZand1-20kHz
4. Sealed package, good seismic resistance
5. IP67 waterproof, anti-oil, dust-proof, can work in poor condition;
6. Wide temperature range: -40-+135 degree
7. Various sizes selection
Detection object: Disk or magnetic ring/ Standard gear or irregular gear
Sensing distance: 0-2mm (0-10mm optional)
Response Frequency: 0-20kHz
Body Size: M12/M16/M18 customized
Connection Method: 3-wire
Output Model: NPN/PNP (Customized)
Working Voltage: DC5~24V DC8~32V
Working Temperature: Normal Form: -20~85 degree (High-heat resistance model customized)
Detected Object Disk or magnetic ring/Modulus >1 uniform distribution gear/Modulus > 0.5 uniform or irregular gear
Sensing Distance 0~10mm/0~2mm/0~2mm (optional)
Response Frequency: 0~5kHz/0~15kHz/1~20kHz
Body Size: M12 /M16 (customized)
Connection Method: 3-wire
Output Model: PNP NPN
Working Voltage : DC5~24V DC8~32V
Load Current: NPN20mA PNP100mA
Working Temperature: Normal Form: -20~85 degree/High Temperature Form: -40~150 degree
