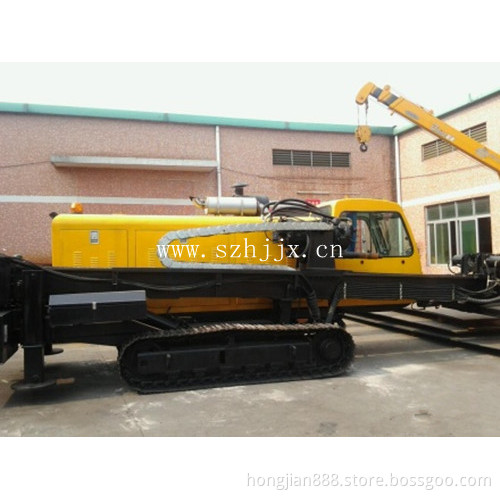

Horizontal Directional Drilling Machine (HJ-40T)
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Product Description
USE:
HJ-40T Guided drilling machine is used for cables laying underground. The machine could drill the hole and get through the road, railway. Airport runway, river without dig and install.
CHARACTERISTIC:
The disel engine is Cummins, with strong power, reliable and stable performance. And most of the hydrulic parts are imported.
It is equipped with durable rubber belts of crawlers, the rig is suitable for moving in the city. And the rig could get on and off standard trailer on itself and it is quick for transportation and allocation.
Suitable for long-distance, large diameter pipelines.
There is the Cab on this guided drilling machine, it is more comfortable for the operator to operate the machine in the Winter.
This guided drilling machine is with the 2T crane. It could help to put the drill pipe on the drill frame to connect the drill unit and also could move some heavy accessories such as reamers.
WORK ABILITY:
It could drill and pullback the steel pipe(dia: 108mm) which length is about 450M. (Remark: The specific length wiill depend on the soil condition).
The machine could lay the cables and pipes such as steel pipe, PVC and PE pipe. The Max. Diameter of the pipe could be 1000mm.
WARRANTY AND SEVICE:
1 year warranty, and we could offer after sales person to train our client how to use the machine.
HJ-40T Guided drilling machine is used for cables laying underground. The machine could drill the hole and get through the road, railway. Airport runway, river without dig and install.
CHARACTERISTIC:
The disel engine is Cummins, with strong power, reliable and stable performance. And most of the hydrulic parts are imported.
It is equipped with durable rubber belts of crawlers, the rig is suitable for moving in the city. And the rig could get on and off standard trailer on itself and it is quick for transportation and allocation.
Suitable for long-distance, large diameter pipelines.
There is the Cab on this guided drilling machine, it is more comfortable for the operator to operate the machine in the Winter.
This guided drilling machine is with the 2T crane. It could help to put the drill pipe on the drill frame to connect the drill unit and also could move some heavy accessories such as reamers.
WORK ABILITY:
It could drill and pullback the steel pipe(dia: 108mm) which length is about 450M. (Remark: The specific length wiill depend on the soil condition).
The machine could lay the cables and pipes such as steel pipe, PVC and PE pipe. The Max. Diameter of the pipe could be 1000mm.
WARRANTY AND SEVICE:
1 year warranty, and we could offer after sales person to train our client how to use the machine.
| Parameters | Unit | HJ-40T |
| Diesel engine model | Cummins | 6CTA8.3-C240 |
| Diesel engine power | kw | 179 |
| Max spindle torque | Nm | 15000 |
| Max pullback force | kn | 380 |
| Max thrust force | kn | 380 |
| Output rotary speed | r.p.m | 0-100 |
| Entry drill angle | ° | 11-25 |
| Max displacement of mud pump | L/min | 320 |
| Max pressure of mud pump | Mpa | 10 |
| Drill rod | mm | Φ89*4500 |
| Size of rig | mm | 7500*2500*2800 |
| Weight | kg | 13000 |
