Product Description

Specifications

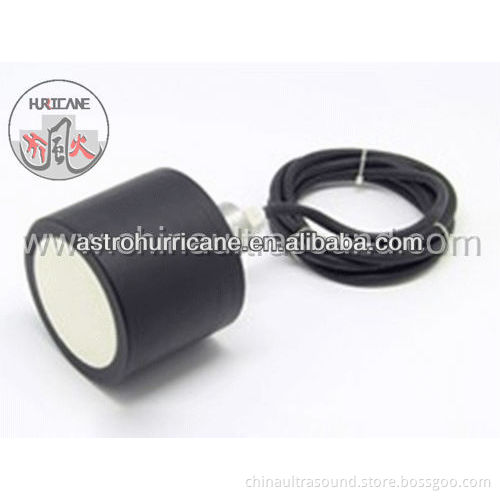

30KHz ultrasound sensor
1. Firm semblance seal and easy to install
2. Detection distance: 0.6-20m
3. Circuit can be customised

Center resonant frequency (kHz)
30KHz± 2.0Khz
Bandwidth
3.0Khz
Detection distance
0.6~20m
Blind spots
<0.6m
Launch angle beam (-6dB full angle)
14± 2°
Sensitive
-65dB min
Electrostatic capacitance
7000PF± 20%
Minimum parallel impedance
200Ω ± 30%
Maximum working voltage (Pulse - 2% duty cycle)
1800Vp-p
Operating temperature
-20 ~70° C
Storage temperature
-40 ~85° C
Protection level
IP65
Size (diameter * height, mm)
Φ 90x103
Installation
Fixed with screw
Case Material
PVC
Cable length
3 M (can be customized)
Weight
1.5kg
