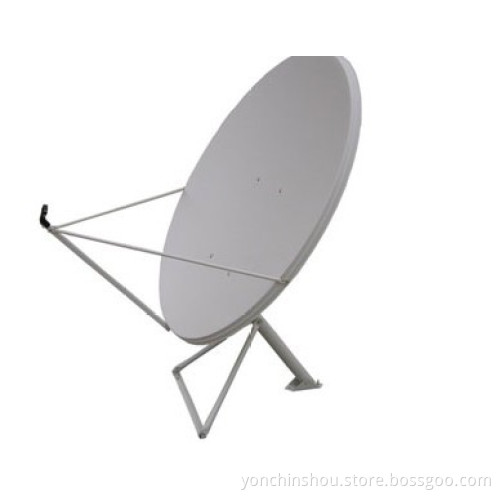

Ku-Band Satellite Dish - 1.2m (Offset)

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T

Product Description

Technical Specifications
Reflector Type
Offset
Reception Frequency
10.7 - 12.75GHz
Offset Angle
23.64°
Apperture Efficiency
About 65%
Gain @ 12.25&12.50&12.75 GHz
43 dB
Focus Length
720 mm
F / D Ratio
0.6
Azimuth Alignment
Fixed, 0-360°
Elevation Alignment
5-85 °
Operating Temperature
-25 ~ +55
Wind Loading Capacity
Operating Wind
72 km/h
Survival Wind
144 km/h
Mechanical Specifications
Material
Steel
Coating Type
Polyester powder coating
Coating Thickness
60-80 µ M
Long Axis
131 cm
Short Axis
120 cm
Type
Pole/wall and ground optional
