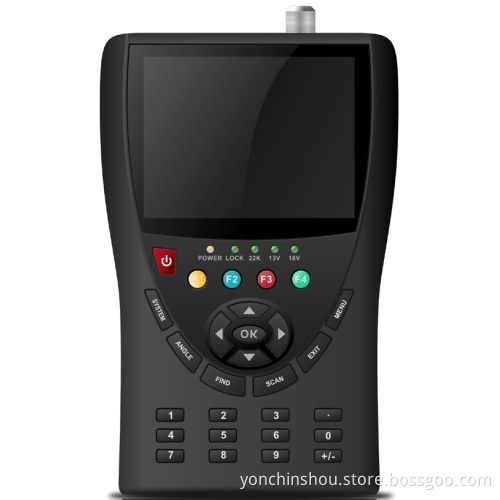

Digital Satellite Finder (DSF2150-B)

General:
DVB-s satellite compliant (MPEG-ii)
Scpc & mcpc receivable from ku and c band satellites
Universal, single, single s & c band wideband LNB
Sensitive tuner with loop-through
Satfinder function
71 pre-programmed satellites
High-resolution 3.5-inch TFT-LCD screen
Visual and audible signal at satellite
Measurement of s / n, ber and c / n
Measured in dB / UV
Spectrum analyzer to display the signal quality of all transponders
Show the signal strength numerically and as a (bar graph)
Show the polarization
Usals, diseqc 1.0/1.1 and diseqc 1.2
Measurements in single-cable unicable
Automatic calculation of the angle of azimuth and elevation
Built-in compass
PVR ready (personal video recorder)
PVR: TV - broadcasts can be stored on a USB stick
Screenshot function: Screen content with measured data can in BMP format on a USB flash drive to save
Software update of the measuring device is USB memory stick
Supported satellite add, delete, move, rename
Supported transponder add, delete, edit
Supported multi-language menu: (deutsch, English, Russian, Turkish, French, Greek, Italian, polski, ukrain, , nederlands, Spanish, Portuguese, Arabic, farsi etc. )
USB: (fat, fat32, ext2, 3 and ntfs)
Rename, delete, create files and set recording path
S/w download, upload and download channel data, sat and tp data
Supported music files, MP3 format.
Music player: Supported pause, ff, fb, jump.
Media play: Supported mpg, ts.
Supported video loop and ff/fb and pause, resume jump, zoom
Supported JPEG, GIF, BMP format, supported rotate and zoom functions, all players can cycle can also manually switch, from top to bottom around the picture can be reversed.
USB PVR:
Record and playback stream files: Recording current channel. (FTA or scramble). (watching and recording)
Watching one channel (FTA/scramble) and recording another channel (FTA/scramble) in the same tp. During recording, can switch the channel in the same tp
USB supported fat & fat32., ntfs
DVB-s front end
Frequency range: 950 - 2150 MHz
Input level: -65~ -25dBm
Input impedance: 75ω
LNB polarisation: 13V/18V/off, imax = 400ma
LNB switching: 22KHz diseq c 1.0/1.2.
Demodulation: Qpsk
Roll off factor: 0.35, 0.25
Fec: 1/2, 2/3, 3/4, 5/6, 7/8, automatic
Symbol rate: 2.0~45 ms/s
DVB standard: DVB-s (en300 421)
Demultiplexer
Standard: ISO/iec 13818-1
Input max. Bit stream rate: 120mbps(serial)/15mbps(parallel)
Video
Standard: ISO/iec 13818-2
MPEG-2 MP@ml
Aspect ratio: 4: 3, 16: 9
Video format: PAL, NTSC, secam
Host supplied audio/video: I & p frame support
Format conversion: Pan & scan, letterbox
Video planes: 6 panes (2 graphic planes, 2 display planes, background, cursor)
Audio
Standard: ISO/iec 13818-3
Sampling frequency: 32, 44.1, 48KHz
Processor
Chipset: Gx6107
Flash memory: 4mbyte
Ddram memory: 32mbyte
Tuner: Sharp1503
Other
Ambient operation temperature: 0~40 degree
Packing, 10PCS/carton, carton size: 465*300*470mm
CE, RoHS approval
Li-ion battery (fast charger): 2450 ma
Last about four hours on battery
Charger adapter: 12.6V, 1.7A
Voltage (charger): 175 - 250 v ~, 50/60 Hz
Weight 470 grams
Dimensions: (wxhxd) 105 x 170 x 45mm
Nylon carrying case with shoulder strap
12 v car adapter
External power supply
Euro power cord
Manual (Portuguese, Spanish, English etc)
Special contain silicone sensor cable length 2.0 m as a bonus in the package!
