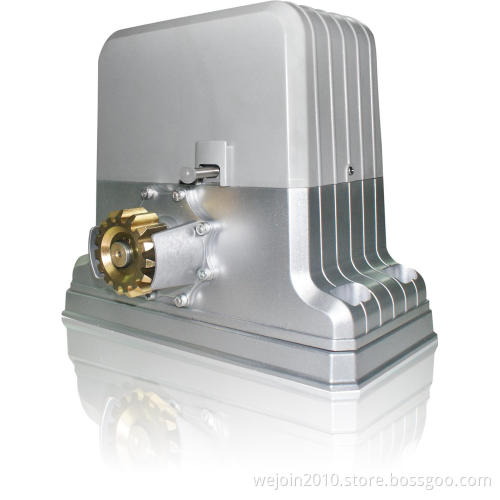

Sliding Gate Operator, Sliding Gate Motor, Sliding Gate Opener (WJKMP202)

Sliding Gate Operator/Gate Operator/Automatic Sliding Gate Operator/Sliding Gate Opener/Gate Opener, gate motor, sliding gate motor, gate operator:
1. Electric soft-start, with crashworthy and backtrack function
2. Heavy duty
3. CE certificate
Functions
1). The structure of integrated mechanic and electric, without any other controllers
2). Electronic soft-start
3). With crashworthy and self-backtrack interfaces
4). Automatic return for resistance
5). Photocell
6). Line control
7). With interface for flashing lamp
Motor Data
Model: WJKMP 202
Voltage: 220V± 10%, 110V± 10%
Frequency: 50/60Hz
Current: 2A, 4.5A
Motor voltage: AC 220V/110V
Capacitor: (220V) 18μ F, 60μ F
Power: 250W
Torque: 22.5nm
Motor number: M=4
Motor speed: 1350rpm, 1620rpm
Gear speed: 58.8rpm, 70.2rpm
Travel speed: 11m/min, 13.2m/min
Working temperature: -40~ 55
Overload protection temperature: 130
Relative humidity: ≤ 90%
Motor making technique: Die casting aluminum alloy
Manual Release: Yes
Remote distance: ≥ 30m
Product weight, approx: 9.13kg, 9.18kg
Max, weight of gate: 1000kg
Electronic Data
Model: WJKMP 201&202
Soft start: YES
Stop on obstacle (sensitivity adjustable): YES
Auto warming-up (at freezing temperature): YES
Remote control: 418MHz (50m, approx)
Wire control: Available
Auto closing: YES
Vehicle loop detector socket: YES
Photocell socket: YES
Alarm light socket: YES
