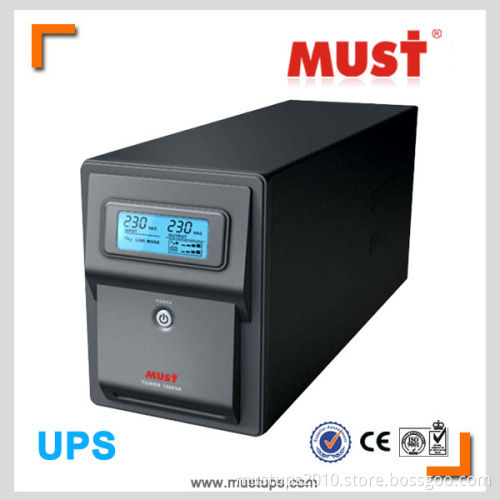

ISO Certificate Computer Use LCD Display Line Interactive UPS

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

Line interactive UPS
Fully digitized microprocessor controlled.
LCD series CPU control guarantees high reliability
Lightning and surge protection.
Cold start function (DC power on).
Equipped with AVR to stabilize output voltage wide input voltage range
Generator Compatible

Auto charging even though the UPS is off
Smart RS232 or USB communication interfaces
Sealed lead-acid, maintenance free battery
Battery low voltage, overload & short circuit protection.
Advanced automatic constant charging circuit, prolongs battery life
Automatic buck and boost AVR function, wide input voltage 155-280VAC
Lead-Acid, maintenance free battery inside, provides strong power to users

MODEL	EW2110 1000	EW2110 1200	EW2110 1500
CAPACITY	1000 VA /600W	1200 VA /720W	1500VA /900W
INPUT
Phase	single
Voltage	110/115/120VAC or 220/230/240VAC
Voltage Range	81-145VAC/145-290VAC
Frequency Range	50/60 Hz ±1% (auto sensing)
OUTPUT
Phase	single
Voltage (Batt. Mode)	115VAC or 230 VAC
Frequency Range (Batt. Mode)	60 Hz or 50 Hz ±1 Hz
Transfer Time	Typical 2-6 ms, 10ms max.
Overload Capability	110% for 5 min, 120% immediate shutdown
Waveform (Batt. Mode)	Modified SineWave
BATTERY
Battery Type & Number	12 V/7 AH x 2	12 V/7 AH x 2	12 V/9 AH x 2
Typical Recharge Time	8 hours recover to 90% capacity
Backup Time(at a 1 PC load with 15 monitor)	20-30 minutes	20-30 minutes	20-30 minutes
INDICATORS
LCD Indicator with Blue Back Light	The LCD will self turn on when the UPS is functioning including in, off, charging mode and fault mode
PROTECTION
Full Protection	Overload, discharge, and overcharge protection
TRANSFER TIME
Typical	Typical 2-6 ms, 10ms max.
ALARM
Battery Mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)	368.3X140.2X180.4
Net Weight (kgs)	9.5	9.5	10
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	AC Mode: Less than 40dB Backup Mode: Less than 45dB
MANAGEMENT
Optional USB/RS-232 Port	Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
