Product Description

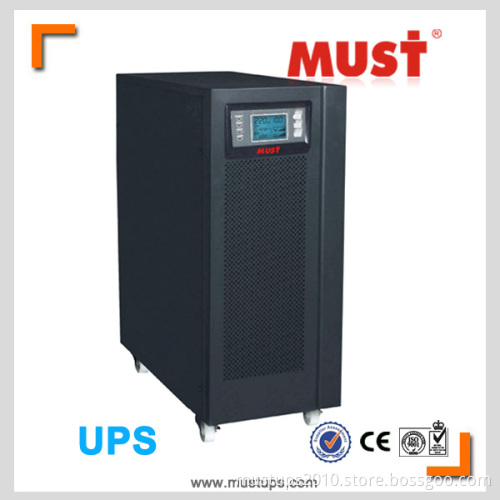

6kVA 10kVA 15kVA 20kVA 380VAC 220VAC Online UPS Pure Sine Wave UPS

True N+1 Redundancy
DSP Double-Conversion On-line Sinewave Design
Input Power Factor Correction
Hot-Swappable User Replaceable Batteries
LCD Display with Advanced Monitoring for Easy UPS Management
Programmable 50/60Hz Frequency Conversion
Optional Remote Emergency Power Off (REPO)
Wide Input Voltage Window
Precision Output Voltage Regulation
Superior Brownout, Surge & Transient Protection
Optional Extended Battery Banks & Chargers
RS-232C, USB & Optional SNMP/HTTP Agent
WINPOWER® UPS Monitoring & Management Software

Model		3HC10KS	3HC15KS			3hC20KS
Rated Power	VA/W	10KVA/7KW	15KVA/10.5KW			20KVA/14KW
Input	Nominal Voltage	380VAC
	Voltage Range	304 ~ 478VAC
	Phase	3 phase (4 wires plus ground)
	Frequency Range	46 ~ 54Hz
	Power Factor	0.95
	Connection	Hardwired
Output	Voltage	220VAC ±1%, Single phase
	Frequency	50Hz ±0.1% ( Battery mode)
	Waveform	Sine Wave
	Power factor	0.7
	Voltage Distortion	±2% under linear load
	Overload Capability	105% ~ 130% for 10 min., ³130% for 1 min.
	Current Crest Ratio	3:1 max.
Battery	Type	Sealed, Maintenance free, Lead-Acid
	Nominal DC Voltage	192VDC
	Back-up time (full load)	Depends on the capacity of the external battery capacity
	Connection	External Battery Socket	Hardwired (CABLE)
Transfer time		0 ms
Maintenance Bypass Switch		Yes
Acoustic noise	At 1 meter distance	55 dBA	60 dBA
Communications	DB-9 Port	USD/RS232 interface
	Intelligent Slot	Options: WebPower, As400 or WinPower CMC
Parallel Port		up to three units in parallel for power redundancy and load sharing
Environmental	Operating temperature	0 ~ 40°C
	Operating humidity	20% ~ 90% non-condensing
Physical	N.W. (Kg)	27		35	35
	G.W.	38		46	46
	Body size (w d h)	248 x 500 x 616 mm		248 x 500 x 616 mm
	Packing size(w d h)	390680834mm		390595578mm
Loading	Pc/Carton	11		1	1
	Pcs/20'	120		120	120
	Pcs/40'	240		240	240
